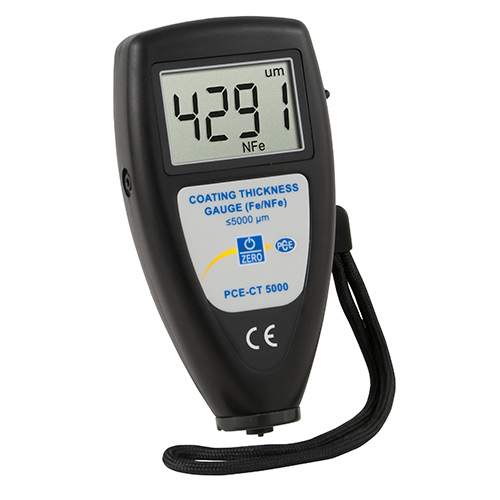

PCE CT 5000 Material Thickness Meter (5000μm)

Specification

Ferrous metals (Fe):magnetic induction

Non-ferrous metals (NFe):eddy current

Measuring range:0 µm ... 5000 µm / 0 mils ... 196.8 mils

Accuracy:±2 % or 2.5 µm / 0.1 mils (the highest value is valid)

Resolution:0.1 µm (0.0 µm ... 99.9 µm) / 0.004 mils (0.0 mils ... 4.0 mils)

1 µm (100 µm ... 5000 µm) / 0.04 mils (4.0 mils ... 200 mils)

Smallest measuring surface:Ø 6 mm / Ø 0.24 in

Smallest radius of curvature:convex. 5 mm / 0.2 in

concave: 60 mm / 2.4 in

Minimum thickness of the base material:0.3 mm / 0.01 in (for Fe-measurement)

0.5 mm / 0.02 in (for NFe-measurement)

Measurement modes:single and interval measurement

Units:µm, mils

Display lighting:Yes

Environmental conditions:0° C ... +50 ° C / 32° F ... 122° F

< 80% RH

Power supply:1.5 V AAA batteries

Device dimension:129 mm x 69 mm x 27 mm

5.1 in x 2.7 in x 1.1 in

Weight:130 g / 0.3 lbs including batteries

Delivery contents

1 x PCE-CT 5000 Material Thickness Meter with integrated probe

1 x storage case

2 x 1.5 V AAA battery

1 x set of calibration standards

1 x user manual
