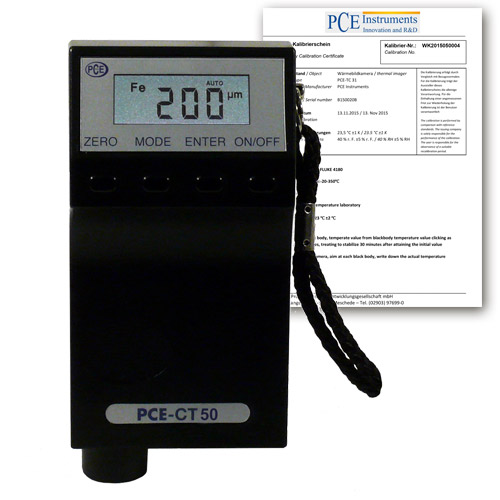

PCE CT 50-ICA Coating Thickness Gauge (0~5000 µm)

Specifications

Measurement range:0 ... 5000 µm; 0 ... 200 mils (selectable)

Measurement values:0.0 µm ... 999 µm / 0 mils ... 40 mils; 1.00 mm ... 5.00 mm / 0.04 in x 0.20 in

Measuring on:only non-ferrous metals

Resolution:0.1 µm (0.0 µm ... 99.9 µm); 1 µm (100 µm ... 999 µm); 0.01 mm (1.00 mm ... 5.00 mm)

respectively

0.01 mils (0.00 mils ... 9.99 mils); 0.1 mils (10.0 mils ... 99.0 mils); 1.0 (100 mils ... 200 mils)

Accuracy of repeat measurements:±(1 µm / 0.04 mils +2 %) of 0 µm ... 999 µm / 40 mils

±3.5 % of 1001 µm ... 5000 µm / 40 mils ... 200 mils

Minimum area of measurement:10 mm x 10 mm / 0.4 in x 0.4 in

Minimal radial curvature:convex: 5 mm / 0.2 in; concave: 30 mm / 1.2 in

Minimum base material thickness:

type F: 0.2 mm / 0.008 in

type N: 0.05 mm / 0.002 in

Display:LCD with 4 digits

Operating temperature:0° C ... 60° C / 32° F ... 140° F

Power:9 V battery (included)

Dimensions:118 mm x 58 mm x 38 mm; 4.6 in x 2.3 in x 1.5 in

Weight:150 g / 0.33 lbs with battery

Dilivery Contents

1 x PCE-CT 50 Automotive Tester - Coating Thickness Gauge

1 x set of calibration standards

1 x carrying case

1 x 9 V battery

1 x user manual

1 x ISO calibration certificate
