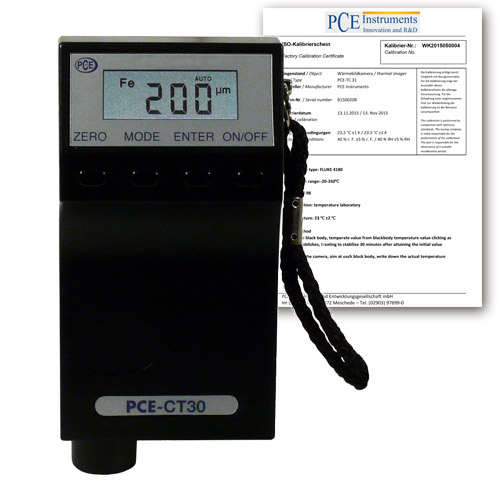

PCE CT 30-ICA Coating Thickness Gauge (3500 µm / 140 mils)

Specifications

Measurement range:3500 µm / 140 mils (selectable)

Measurement values:999 µm / 39.0 mils; 1.00 mm ... 3.50 mm / 0.04 in ... 0.14 in

Measurement of surface:ferrous and non-ferrous surfaces

Resolution:

0.1 µm in the range 0 ... 99.9 µm

1 µm in the range 100 µm ... 999 µm

0.01 mm in the range 1.00 mm ... 3.50 mm

respectively

0.01 mils in the range 0.00 ... 9.99 mils

0.1 mils in the range 10.0 ... 99.0 mils

1.0 in the range 100 ... 140 mils

Accuracy of repeat measurements:

±(1 µm + 2 %) of 0 ... 999 µm / 39 mils

± 3.5 % of 1001 µm ... 3500 µm / 39 mils ... 138 mils

Minimum area of measurement:10 mm x 10 mm / 0.4 in x 0.4 in

Minimal radial curvature:convexed: 5 mm / 0.2 in; concaved: 30 mm / 1.2 in

Minimum base material thickness:type F: 0.2 mm / 0.01 in; type N: 0.05 mm / 0.002 in

Display:LCD with 4 digits

Operating temperature:0° C ... 60° C / 32° F ... 140° F

Power:9 V battery (included)

Dimensions:118 mm x 58 mm x 38 mm; 4.6 in x 2.3 in x 1.5 in

Weight:150 g / 0.33 lbs with battery

Dilivery Contents

1 x PCE-CT 30 Automotive Tester - Coating Thickness Gauge

1 x set of calibration standards

1 x carrying case

1 x 9 V battery

1 x user manual

1 x ISO calibration certificate
