Specifications
Illuminating/Viewing Geometry:8/d
Measuring Aperture:Ø8 mm / Ø4 mm
Detector:Silicon photoelectric diode
Color Space: CIEL*a*b*C*h; CIEL a* b*; CIEXYZ; CIERGB; CIEL u* v*; CIEL*C*h°
Yellowness & Whiteness Color Fastness
Color Difference Formula:ΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter
Light source:D65, D50, A
Light source device:LED light excitation
Errors between each equipment:<=0.40 ΔE*ab
Storage:100 pcs. standards, 20,000 pcs. samples
Repeatability:
Standard deviation within ΔE*ab 0.07
Average of 30 measurements of standard white plate
Weight:500 g / 17.6 oz
Dimension:205 x 70 x 100 mm / 8 x 2.7 x 3.9 in
Power source:Rechargeable Lithium-Ion battery 3.7 V
Charging Time:2 hours
Measuring times before recharging:more than 3000 times
Lamp Life:5 years or more than 1.6 million measurements
Operating Temperature / Humidity Range:-10 ... +40 °C / 14 ... 104 °F; 0 ... 85% relative humidity, non condensation
Data Interface:USB
Dilivery Contents

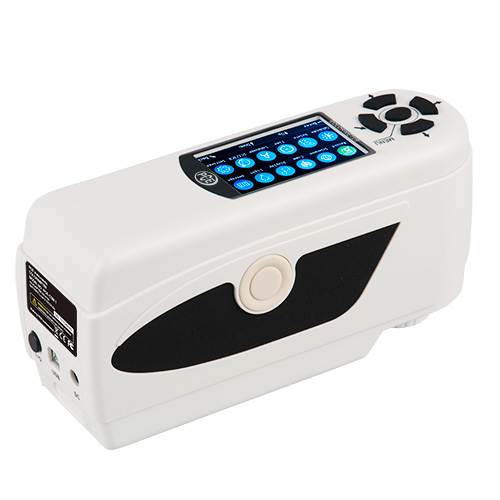

1 x Color Meter PCE-CSM 7
1 x Transport case
1 x Rechargeable battery
1 x Mains AC adapter
1 x Calibration tester
1 x PC-Software
1 x User manual
2 x Apertures (4 and 8 mm diameter)
1 x White calibration standard
