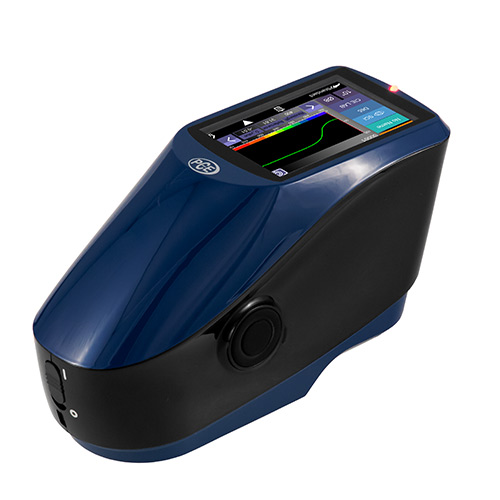

PCE CSM 22 Color Meter

Specifications

Measuring geometry: 8° / d

Size of integrated sphere:48 mm / 1.9 in

Light source:LED lighting system

Spectrophotometric operation:Concave grating

Sensor:256 pixels CMOS image sensor

Wavelength range:400 ... 700 nm

Wavelength interval:10 nm

Measured reflection range:0 ... 200%

Measuring aperture:

Double iris: 10 mm (0.4") / 8 mm (0.3") and 5 mm (0.2") / 4 mm (0.15")

Specular component:SCI, SCE

Color ranges:CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB

Formulas for color inequality:ΔE * ab, ΔE * uv, ΔE * 94, ΔE * cmc (2: 1), ΔE * cmc (1: 1), ΔE * 00, ΔE (Hunter)

Light Sources:D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12

Viewing angle:2° / 10°

Data displaySpectrogram values, color values ​​samples, color difference values ​​/ graph, pass / fail result, color balance

Measuring time:2.6 seconds

Repeatability:MAV / SCI: ΔE * ≤0.03

Device error:MAV / SCI: ΔE * ≤0.15

Measurement mode:Single measurement, average value measurement

Location method:Finding the measuring points by camera

Power supply:Built-in Li-ion battery

Dimensions:184 x 77 x 105 mm / 7.2 x 3 x 4.1 in

Mass:600 g / 1.3 lbs

Luminous life:5 years / more than 3 million measurements

Display:3.5 in TFT color LCD, capacitive touch screen

Data InterfaceUSB, Bluetooth 4.0

Data storage:2000 standards, 20000 samples

Menu languages:English, Chinese

Operating conditions:0 ... 40°C / 32 ... 104°F

0 ... 85% relative humidity (non-condensing)

Storage conditions:-20 ... 50°C / -4 ... 122°F

0 ... 85% relative humidity (non-condensing)

Dilivery Contents

1 x Color meter PCE-CSM 22

1 x LI-ion battery (installed)

1 x Calibration standard (white and black)

1 x Charging adapter

1 x Dust cover

1 x USB cable

1 x Factory calibration certificate

1 x CD-Rom with software

1 x Cleaning cloth

1 x USB dongle (depending on model)

1 x User manual
