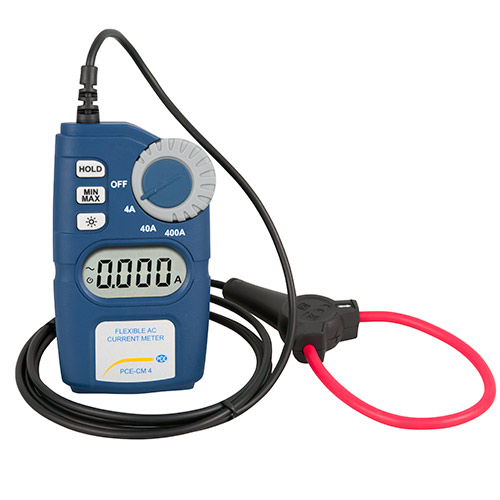

PCE CM 4 Clamp Meter (4 A / 40 A / 400 A Ac, ± 3 %)

Manufacturer: PCE-Anh

Model : PCE-CM 4

Warranty : 12 months

Specification

Measuring range:4 A / 40 A / 400 A AC

Resolution:0.001 A / 0.01 A / 0.1 A AC

Accuracy: (45 ... 500 Hz)± 3 %

Power supply:2 x AAA or 2 x UM-4 batteries ; 1,5 V

Battery life:120 hours

Temperature coefficients:(0.1 * measuring accuracy) deviation per °C <18 °C or >28 °C (reference temperature: 23 °C)

Display:4-digit LCD

Over-Load:-OL- warning on the display

Sampling rate:2 times/s

Functions:Low power indication

Auto Power-Off

Min/Max function

Hold function

Length clamp conductor:approx. 20.3 cm / 8 "

Ø cable:5.5 mm / 0.21 in

Cable length: (clamp-display unit)1.5 m / 4.9 ft

Weight:196 g / 6.9 oz (incl. batteries)

Delivery contents

1 x PCE-CM 4

1 x Batteries

1 x Instruction manual

Manual
