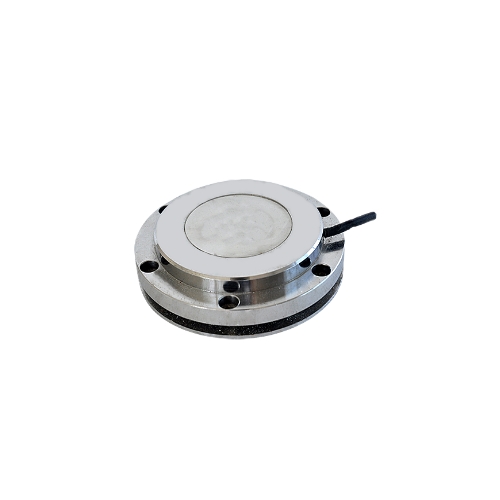

PCE-C-R6S Force Sensor (500~5000kg)

Manufacturer: PCE-ANH

Model : PCE-C-R6S

Warranty : 12 months

Specification

Rated load / force: F.S.500 / 1000 / 2000 / 3000 / 5000 kg

! Rated load / force selectable !

Limit load / force:120 %

Breaking load / force:150 %

Rated output:ca. 1.6 mV/V ±0.005

Operating range of supply voltage:10 V

Maximum supply voltage:20 V

Deviations of the zero signal:± 2 % F.S.

Linearity deviation:0.1 % F.S.

Reverse voltage (hysteresis):0.1 % F.S.

Repeatability:0.03 % F.S.

Stress creep (30 min):0.03 % F.S.

Input resistance:750 ± 10 Ω

Output resistance:700 ± 7 Ω

Insulation resistance:≥5000 MΩ

Nominal range of ambient temperature:-10 … 50 °C / 14 ... 122 °F

Service temperature range:-20 … 60 °C / -4 ... 140 °F

Temperature coefficient of characteristic value:0.05 % F.S. / 10 °C

Temperature coefficient of zero point:0.05 % F.S. / 10 °C

Sensor cable:Ø 6 x 4 m / (ends open)

Cable assignment:

EXC+ = red

EXC- = black

SIG+ = green

SIG- = white

REF+ = blue

REF- = yellow

GND = neutral

Material / measuring body:stainless steel

Protection:IP67

Delivery contents

Load cell (depending on the selection) with 4 m connection cable, 6 wires, ends open
