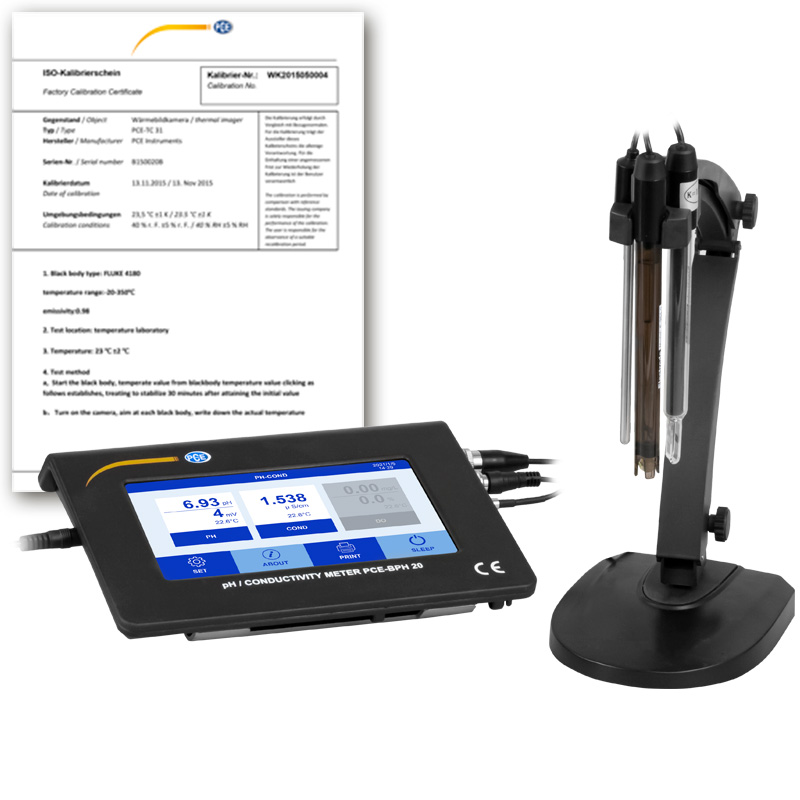

PCE BPH 20-ICA Table pH Meter (-2.000 ... 19.999 pH, incl. ISO Calibration Certificate)

Measuring range pH: -2.000 ... 19.999 pH

Resolution: 0.1 / 0.01 pH

Accuracy: electrode: ±0.02 pH

Input current: ≤1×10^-12 A

Input resistance: ≥3×10^12 Ω

Measurement stability: ±0.01 pH/3h

Temperature compensation: 0 ... 100 °C / 32 ... 212 °F (automatic / manual)

Measuring range mV:-1999.9 ... 1999.9 mV

Resolution: 1 mV

Accuracy: ±0.03 % of measuring range

Measuring range temperature: -10 ... 110 °C / 14 ... 230 °F

Resolution: 0.1 °C

Accuracy: 5 ... 60 °C (41 ... 140 °F): ±0.4°C; rest: ±0.8 °C

Measuring range conductivity:

0 ... 19.99 µS/cm

20.0 ... 199.9 µS/cm

200 ... 1999 µS/cm

2.00 ... 19.99 mS/cm

20.0 ... 1999.9 mS/cm

Resolution: 0.01 / 0.1/ 1 μS/cm, 0.01 / 0.1 mS/cm

Accuracy: measuring device: ±0.5 % of measuring range in combination with measuring electrode: ±1.0 % of measuring range

Temperature compensation: 0 ... 100 °C / 32 ... 212 °F (automatic / manual)

Adjustable electrode constant: 0.1 / 1 / 10 cm^-1

Adjustable reference temperature: 25 °C / 77 °F, 20 °C / 68 °F, 18 °C / 64 °F

Measuring range: TDS 0 ... 100 g/l

Resolution: 0.001 mg/l

Accuracy: measuring device: ±0.5 % of measuring range in combination with measuring electrode: ±1.0 % of measuring range

Temperature compensation: 0 ... 100 °C / 32 ... 212 °F (automatic / manual)

Adjustable electrode constant: 0.1 / 1 / 10 cm^-1

Adjustable reference temperature: 25 °C / 77 °F, 20 °C / 68 °F, 18 °C / 64 °F

Measuring range salinity: 0 ... 100 ppt

Resolution: 0.1 ppt

Accuracy: measuring device: ±0.5 % of measuring range in combination with measuring electrode: ±1.0 % of measuring range

Temperature compensation: 0 ... 100 °C / 32 ... 212 °F (automatic / manual)

Adjustable electrode constant: 0.1 / 1 / 10 cm^-1

Adjustable reference temperature: 25 °C / 77 °F, 20 °C / 68 °F, 18 °C / 64 °F

Measuring range resistance: 0 ... 100 MΩ cm

Resolution: 0.001 / 0.01 / 0.1 / 1M Ω•cm

Accuracy: measuring device: ±0.5 % of measuring range in combination with measuring electrode: ±1.0 % of measuring range

Temperature compensation: 0 ... 100 °C / 32 ... 212 °F (automatic / manual)

Adjustable electrode constant: 0.1 / 1 / 10 cm^-1

Adjustable reference temperature: 25 °C / 77 °F, 20 °C / 68 °F, 18 °C / 64 °F

Data memory: 300 pH measuring points; 300 conductivity measuring points

Content of a memory point: date and time, measured value with unit and temperature

Display: 7" touchscreen

Resolution: 1024 x 600 pixels

Interfaces: USB A, USB B, Bluetooth

Power supply:

Primary: 230 ... 240 V / 50 Hz

Secondary: 12 V DC / 1 A

Operating conditions: 5 ... 35 °C / 41 ... 95 °F, < 85 % RH not condensing

IP protection class: IP 54

Dimensions: 175 × 220 × 40 mm / 68.9 x 86.6 x 15.7"

Weight: ca. 310 g / 10.9 lb

Delivery Scope:

1 x Table pH meter PCE-BPH 20

1 x pH electrode

1 x Temperature sensor

1 x Conductivity electrode

1 x Electrode holder

1 x Power supply

1 x USB-A to USB-B cable

1 x Software

1 x Instruction manual

1 x ISO Calibration Certificate only for pH value

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
