PCE 830-2-ICA Three Phase Power Analyzer

Specification

Measurement values:Measurement ranges / resolution / accuracy

PCE-830 + PCE-6801

Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1):

5.0 W to 999.9 W / 0.1 W / ±1% ±0.8 W

1.000 kW to 9.999 kW / 0.001 kW / ±1% ±8 W

10.00 kW to 99.99 kW / 0.01 kW / ±1% ±80 W

100.0 kW to 999.9 kW / 0.1 kW / ±1% ±0.8 kW

1,000 kW to 9,999 kW / 1 kW / ±1% ±8 kW

PCE-830 + PCE-6802

Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1):

5.0 W to 999.9 W / 0.1 W / ±1% ±0.8 W

1.000 kW to 9.999 kW / 0.001 kW / ±1% ±8 W

10.00 kW to 99.99 kW / 0.01 kW / ±1% ±80 W

100.0 kW to 999.9 kW / 0.1 kW / ±1% ±0.8 kW

1000 kW to 9999 kW / 1 kW / ±1% ±8 kW

0.000 MW to 9.999 MW / 0.001 MW / ±1% ±80 kW

PCE-830 + PCE-3007

Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1):

10.0 W to 999.9 W / 0.1 W / ±1% of measurement range

1.000 kW to 9.999 kW / 0.001 kW / ±1% of measurement range

10.00 kW to 99.99 kW / 0.01 kW / ±1% of measurement range

100.0 kW to 999.9 kW / 0.1 kW / ±1% of measurement range

1,000 kW to 9,999 kW / 1 kW / ±1% of measurement range

PCE-830 + PCE-6801

Current AC (50 Hz or 60 Hz, auto range select, TRMS):

0.04 A to 1 A / 0.001 A / ±0.5% ±0.05 A

0.4 A to 10.0 A / 0.01 A / ±0.5% ±0.05 A

4 A to 100.0 A / 0.1 A / ±1.0% ±0.5 A

PCE-830 + PCE-6802

Current AC (50 Hz or 60 Hz, auto range select, TRMS):

10.00 A / 0.01 A /

4 A to 100.0 A / 0.01 A / ±0.5% ±0.5 A

40 A to 1000.0 A / 0.1 A / ±0.5% ±5 A

PCE-830 + PCE-3007

Current AC (50 Hz or 60 Hz, auto range select, TRMS):

0 to 300 A / 0.1 A / ±1.0% of measurement range

300.0 A to 999.9 A / 0.1 A / ±1.0% of measurement range

1,000 A to 3,000 A / 1 A / ±1.0% of measurement range

Voltage AC (50 Hz or 60 Hz, TRMS):

20.0 V ... 500.0 V / 0.1 V / ±0.5 % ±5 digits

(grounded)

20.0 V ... 600.0 V / 0.1 V / ±0.5 % ±5 digits

(phase to phase)

Harmonic distortionof AC voltage:

1º to 20º / 0.1% / ±1.0%

21º to 49º / 0.1% / 4% of reading ±2.0%

50º to 99º / 0.1% / 6% of reading ±2.0%

PCE-830 + PCE-6801

Harmonics of AC current in %:

1º to 20º / 0.1% / ±0.2% of reading ±1.0%

11º to 20º / 0.1% / ±2% of reading ±1.0%

21º to 50º (A)/ 0.1% / ±5% of reading ±1.0%

21º to 50º (mA)/ 0.1% / ±10% of reading ±1.0%

51º to 99º / 0.1% / ±35% of reading ±1.0%

PCE-830 + PCE-6802: 1º to 10º / 0.1% / ±2%

Harmonics of AC current in %:

21º to 49º / 0.1% / 4% of reading ±2.0%

50º to 99º / 0.1% / 6% of reading ±2.0%

PCE-830 + PCE-3007

Harmonics of AC current in %:

1º to 10º / 0.1% / ±2%

21º to 49º / 0.1% / ±6%

50º to 99º / 0.1% / ±10%

PCE-830 + PCE-6801 / PCE-830 + PCE-6802

Power Factor (PF):0.00 to 1.00 / 0.01 / ±0.04

PCE-830 + PCE-3007

Power Factor (PF):0.000 to 1,000 / 0.001 / ±0.04

PCE-830 + PCE-6801 / PCE-830 + PCE-6802

Phase angle (Phi):-180° to 180° / 0.1° / ±1°

PCE-830 + PCE-3007

Phase angle (Phi):0° to 180° / 0.1° / ±2°

PCE-830 + PCE-6801: 0.0 to 20.0% / 0.1% / ±1%

Total harmonic distortion:

20.0% to 100% / 0.1% / ±3% of reading ±5%

100% to 999.9% / 0.1% / ±10% of reading ±10%

PCE-830 + PCE-6802 : 0.0 to 20.0% / 0.1% / ±2%

Total harmonic distortion:

20.0% to 100% / 0.1% / ±6% of reading ±1%

100% to 999.9% / 0.1% / ±10% of reading ±1%

PCE-830 + PCE-3007: 0.0 to 20.0% / 0.1% / ±2%

Total harmonic distortion:

20.0% to 100% / 0.1% / ±6% of reading ±1%

100% to 999.9% / 0.1% / ±10% of reading ±1%

Maximum measurement of AC voltage and current:

50 Hz / 19 µS / ±5% ±30 digits

60 Hz / 16 µS / ±5% ±30 digits

Peak value measurement of AC voltage and current:1.00 to 99.99 / 0.01 / ±5% ±30 digits

Frequency range in automatic mode:45 Hz to 65 Hz / 0.1 H z / 0.1 Hz

Memory:512 kB for a maximum 52,420 readings taken by 1 phase / 2 conductors

Port:USB

Software and cable:included, for Windows 2000, XP, ME

Display:backlit LCD with dot matrix

Power:8 AA batteries (Mignon)

Dimensions:

257 mm x 155 mm x 57 mm

10.1 in x 6.10 in x 2.24 in

Weight:1.16 kg / 2.56 lbs

Operating conditions:

max. 85% relative humidity

-10º C to 50º C / 14º F to 122º F

Type of protection / standards:IEC 61010, 600 V/CAT III

Delivery contents

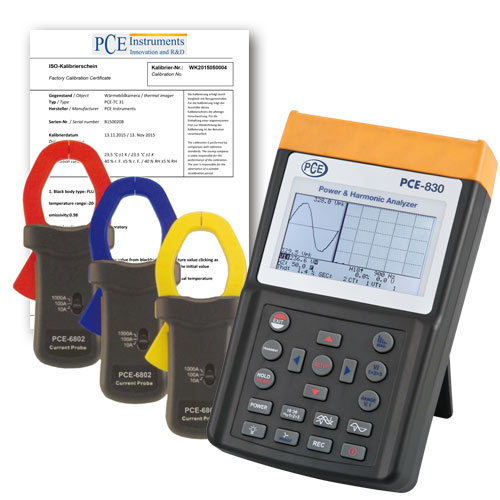

1 x PCE-830-2 Power Analyzer

3 x Amp clamps - Depending on the set ordered (PCE-6801, PCE-6802 or PCE-3007)

4 x Alligator clips

4 x Safety test lines (3m long)

8 x Batteries

1 x Mains adaptor

1 x Carrying case

1 x USB cablem software

1 x User's manual

1 x ISO Calibration Certificate
