PCE 430-EKIT Outdoor Noise Dose Meter Kit

Specification

Measuring range: 22 ... 136 db(A)

Accuracy: Class 1

Frequency range: 3 Hz ... 20 kHz

Standards

GB/T3785.1-2010

GB/T3785.2-2010

IEC60651:1979

IEC60804:2000

IEC61672-1:2013

ANSI S1.4-1983

ANSI S1.43-1997

Frequency analysis

1/1 Octave band filter: 8 Hz ... 16 kHz

1/3 Octave band filter: 6.3 Hz ... 20 kHz

Microphone

1/2"

Microphone Class: 1

Sensitivity: 40 mV/PA

Frequency range: 3 Hz ... 20 kHz

Connection: TNC

Power supply: ICCP Standard

Data-logging interval: 1 s ... 24 h (adjustable)

Measuring functions: LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN

X = Frequency weighting: A, B, C, Z

Y = Time weighting: F, S, I

N = Statistics in %: 1 ... 99 %

Frequency weightings: A, B, C, Z

Time weightings: Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms

Inherent noise

Microphone: 19 db(A), 25 db(C), 31 db(Z)

Electronics: 13 db(A), 17 db(C), 24 db(Z)

AD converter: 24 Bit

Sample rate

Standard: 48 kHz

LN Mode: 20 ms

Measuring display: Numerical; Bar graph; Graphical

Display: 160 x 160 pixel LCD with backlight

Memory: 4 GB Micro SD card

Interface: USB (Memory readable via software or directly as mass storage)

RS-232

Voltage output: AC 5V RMS; DC 10 mV/db

Alarm: Adjustable

GPS:Yes, GPS receiver for location determination

Power supply:

4 x 1.5 V AA Batteries

12 V / 1 A Power plug

5 V / 1 A USB

Battery life: Min. 10 h continuous use

Dimensions: 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)

Weight: Approx. 620 g / 1.4 lbs incl. batteries

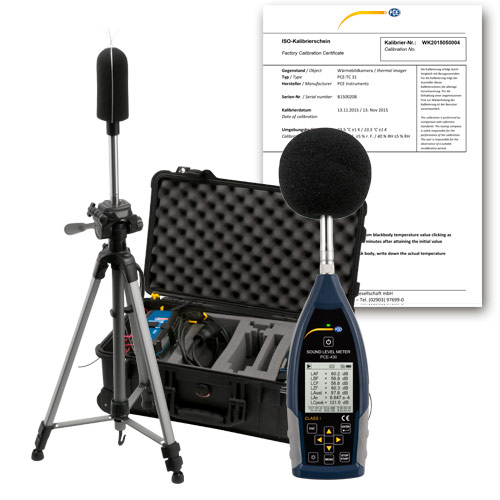

Delivery contents

1 x Noise Dose Meter PCE-430-EKIT incl. Outdoor Noise Level Meter Kit

1 x 1/2" measurement microphone class 1

1 x Wind noise suppression (foam ball)

1 x USB interface cable

1 x Software

1 x Power adapter

1 x Suitcase

1 x User manual

1 x ISO calibration certificate

1 x Outdoor Noise Level Meter Kit PCE-4xx-EKIT

1 x Waterproof PELI transport case

1 x Wind and rain protection for microphone of the PCE-4xx series

1 x Charger for internal batteries

2 x 12 V lead gel batteries

1 x Tripod

1 x 2 m / 6ft 6" microphone cable

1 x Connection cable for power supply (optional Schuko or US connection)
