Specification
Noise levels:
Low: 30 ... 80 dB
Medium: 50 ... 100 dB
High: 80 ... 130 dB
Auto: 30 ... 130 dB
Dynamic range:50 dB
Display:4-digit LCD
Resolution:0.1 dB
Accuracy:±1.4 dB
Display update:2 x per second
Frequency:31.5 Hz ... 8 kHz
Storage capacity:32,700 readings (9 hours @ 1 second interval)
Frequency weighting:A and C
Time weighting:fast (125 ms); slow (1 sec.)
Microphone type:Electret condenser
Functions:MIN, MAX, HOLD, ALARM
Analog output:AC/DC
Headphone
Data interface:USB
Automatic shutdown:after 15 minutes inactivity
Operating conditions:0 ... +40 °C / +32 ... +104 °F, < 90 % RH
Storage conditions:-10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH
Power supply:9 V block battery (for approx. 30 h continuous operation)
AC power
Dimensions:280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"
Weight:ca. 350 g / 0.78 lb
Standards:IEC 61672-1 (Class II)
Delivery contents

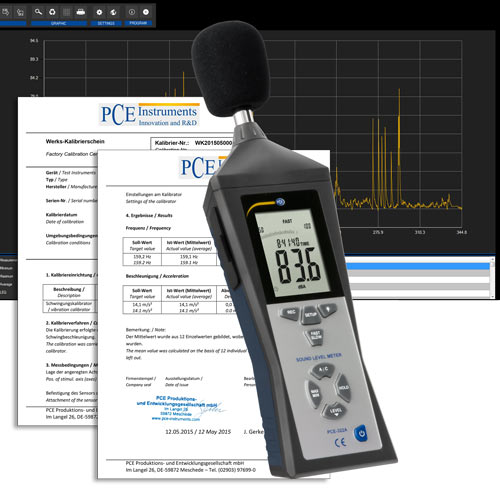

1 x Noise Dose Meter PCE-322A
1 x PCE-SOFT-LEQ software (LEQ calculation) + manual
1 x Wind noise suppressor
1 x Interface cable
1 x Mini tripod
1 x Calibration screwdriver
1 x Battery
1 x Power adapter
1 x Carrying case
1 x Operation manual
1 x ISO Calibration certificate
