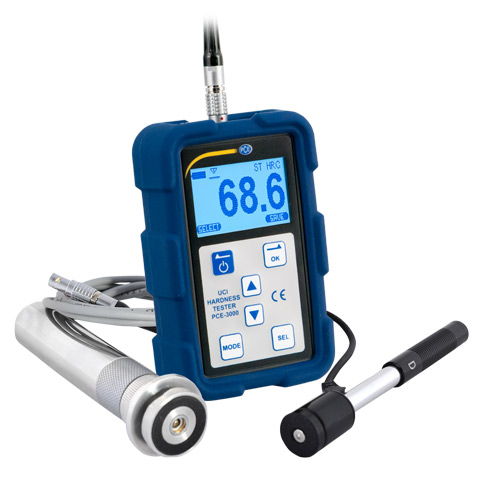

PCE 3000UL Hardness Tester

Specification

Measuring Range

Rockwell: 20 ... 70 HRC

Brinell: 90 ... 450 HB

Vickers: 230 ... 940 HV

tensile strength: 370 ... 1740 MPa

Measurement Accuracy

± 1.5% HRC

± 3% HB

± 3% HV

Maximum Materialrauhigkeit

10 N probe: 1.5 Ra

50 N probe: 2.5 Ra

rebound probe: 3,2 Ra

Maximum Curvature Radius of the Surface

UCI probes: 5.0mm / 0.19 in

rebound probe: 10 mm / 0.39 in

Minimum Weight of the Specimen

UCI probes: 0.1 Kg / 0.2 lbs

rebound probe: 5 kg / 11 lbs

Minimum thickness of the test specimen

UCI probes: 1 mm / 0.03 in

rebound probe: 10 mm / 0.3 in

Working Conditions: - 20 ... 40 ° C / -4 ... 104 ° F

Dimensions

Unit: 122 x 65 x 33 mm / 4.8 x 2.5 x 1.2 in

UCI probe: Ø25 x 140 mm / 0.9 x 5.5 in

rebound probe: Ø20 x 150 mm / 0.7 x 5.9 in

Weight

Device: 200g / 7.05 oz

UCI probe: 250 g / 8.8 oz

rebound probe: 100 g / 3.5 oz

Power Supply: 2 x 1.5 V battery

Battery Life: 20 h

Delivery contents

1 x UCI hardness tester PCE-3000

1 x 50 N UCI probe

2 x 1.5 V NiMh battery

1 x Charger

1 x Manual

1 x USB cable
