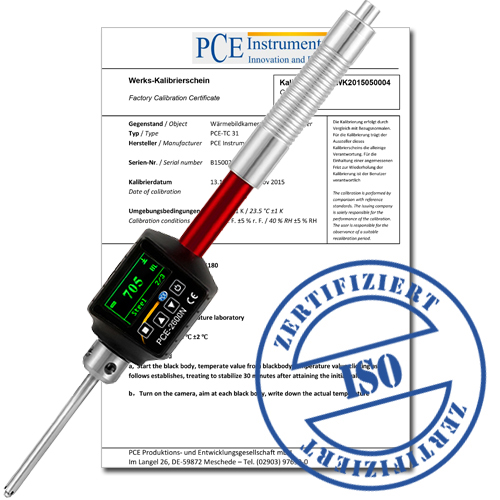

PCE 2600N-ICA Portable Metal Hardness Tester with ISO

Specification

Measurement method:According to Leeb

Impactor:DL

Measuring range:

HLD: 170 ... 960

HRC: 17.9 ... 69.5

HB: 19 ... 683

HV: 80 ... 1042

HS: 30.6 ... 102.6

HRA: 59.1 ... 88

HRB: 3.5 ... 101.7

Measurement accuracy: HLD: ± 0.5%

Maximum hardness:1042 HV

Striker:Type D

Display: 128 x 64 mm / 5 x 2.5 in OLED

Repeatability:HLD: ± 0.8%

Hardness max.:1042 HV

Measurement units:HLD, HRC, HB, HV, HS, HRA, HRB

Display:15 mm / 0.59 in

Material: Steel; Cast steel; Alloy tool steel; Stainless steel; Cast iron; Nodular cast iron parts; Cast aluminum alloy; Brass; Bronze; Tin bronze

Measuring ranges on different material surfaces

Material

Steel:

HRC: 17.9 ... 68.5

HRB: 59.6 ... 99.6

HRA: 59.1 ... 85.8

HB: 127 ... 651

HV: 83 ... 976

HS: 32.2 ... 99.5

Tool steel:

HRC: 17.9 ... 68.5

HRB: 59.6 ... 99.6

HRA: 59.1 ... 85.8

HB: 127 ... 651

HV: 83 ... 976

HS: 32.2 ... 99.5

Stainless steel:

HRB: 46.5 ... 101.7

HB: 85 ... 655

HV: 85 ... 802

Cast iron:

HB: 93 ... 334

Brass:

HRB: 13.5 ... 95.3

HB: 40 ... 173

Bronze:HB: 60 ... 209

CopperHB: 45 ... 315

Battery life:ca. 10 h

Power supply:Polymer Li-ion battery, 3.7V

Interface:USB 2.0

Dimensions:205 x 32 x 25 mm / 8 x 1.3 x 1 in

Weight:650 g / 1.4 lbs

Display:128 x 64 mm / 5 x 2.5 in OLED

Opearting conditions:-10 ... 50°C / 14 ... 122°F , <90% r.H.

Storage conditions:-30 ... 60°C / -22 ... 140°F, <90% r.H.

Delivery contents

1 x Hardness Tester PCE-2600N-ICA

1 x Impactor

1 x Calibration block

1 x Cleaning brush

1 x ISO calibration certificate

1 x Carrying case

1 x Operation manual
