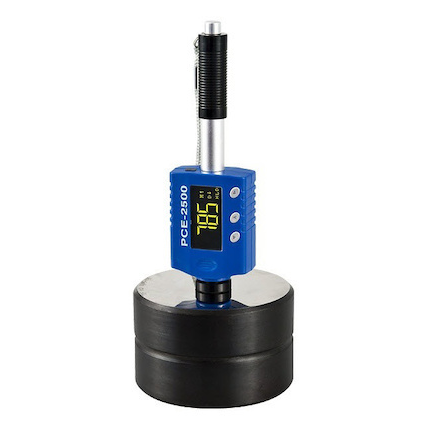

PCE-2500 Durometer for Metals

Manufacturer: PCE-ANH

Model : PCE-2500

Warranty : 12 months

Specification

Accuracy:± 0.4% at (HL = 800)

Impact direction:

Digital with high contrast OLED

Universal angle, no need to setup impact direction

Hardness scale: ± 2 HL (or 0.3% @ HL = 800)

Measuring range:

Display

HL / HRC / HRB / HB / HV / HS / HRA / σb

HL 170-960 / HRC 17-70 / HRB 13-109 / HB 20-665 / HV 80-940 / HS 32- 99.5 / HRA 30-88 / σb(rm) 255-2639N/mm2

Impact device:D

Materials:10 common metal materials: steel / cast steel, alloy tool steel, stainless steel, lamellar iron, nodular iron, cast aluminum, brass, bronze, wrought copper, forging steel

Memory:30 files, 100 data (measurement value, material, etc.) for each file = 2000 values total

Interface:USB

Alarm:Max or min values

Indicator:Low battery

Power supply:3.7V Li-ion rechargeable battery

Power on/off:Automatic shutdown power-saving function

Operating conditions:-40 ... 80°C / -40 ... 176°F

Dimensions:148 x 44 x 22 mm / 5.83 x 1.73 x 0.87 in

Weight:110 g / < 1 lb

Standards:ASTM A956, DIN 50156, GB/T 17394-1998

Delivery contents

1 x PCE-2500 material hardness tester for metals

1 x Charging cable

1 x Test block

1 x Cleaning brush

1 x Carrying case

1 x User manual
