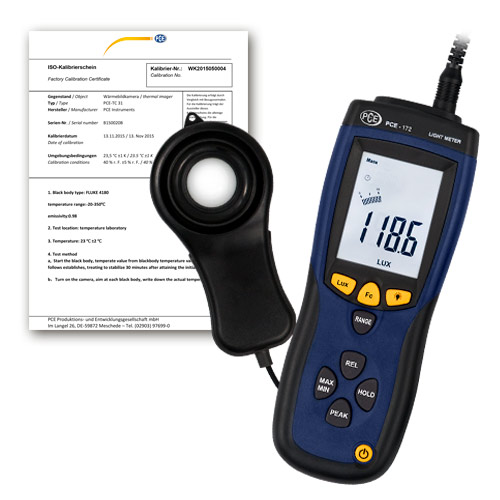

PCE 172-ICA Light Meter (40~ 400.000 lux, ± 5%)

Specification

Ranges

400.0/4000/lux

40.00/400.0 klux (1 klux = 1000 Lux)

40.00/400.0/4000/fc

40.00 kfc (1 kfc = 1000 fc)

Resolution: 0.1/1/10/100 lux; 0.01/0.1/1/10 FootCandle

Accuracy: ± 5% of reading ±10 digits (<10,000 lux); ± 10% of reading ±10 digits (>10,000 lux)

Repeatability: ± 3%

Overload indicator: OL = Overload

Screen refresh rate: 1.5 per second

Operating conditions: 0 ... 40ºC / 32 ... 104°F, 80% r.h.

Display: 3¾ digit LCD

Power: 9V battery

Dimensions

Device: 203 x 75 x 50 mm / 7.9 x 2.9 x 1.9 in (width x height x depth)

Light sensor: 115 x 60 x 20 mm / 4.5 x 2.3 x 0.7 in (width x height x depth)

Cable length: 150 cm / 59 in

Weight:280 g / < 1 lb

Standards

Safety: IEC-1010-1; EN 61010-1

EMV: EN 50081-1; EN 50082-1 corresponding with DIN 5031; DIN 5032

Delivery contents

1 x PCE-172 environmental tester

1 x Light sensor with spiral cable

1 x Battery

1 x User manual

1 x ISO Calibration Certificate
