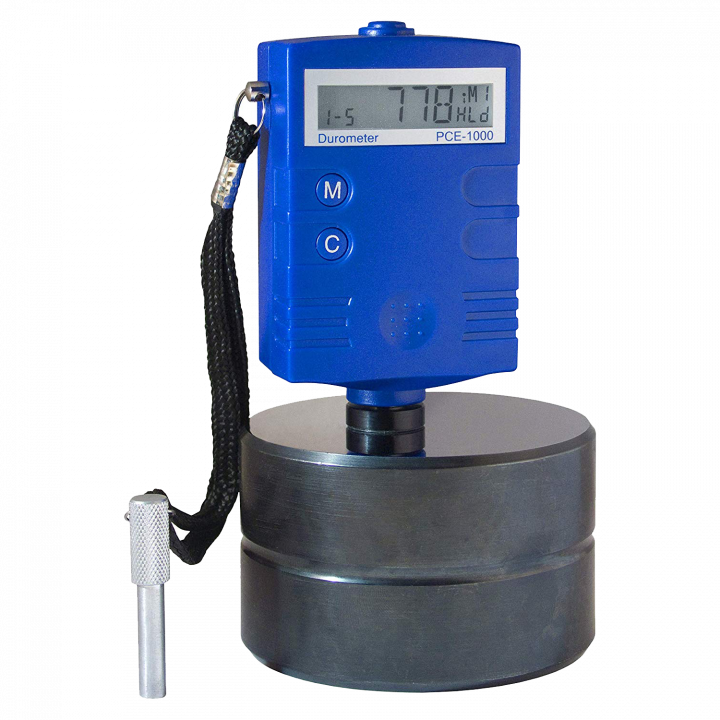

PCE 1000 Hardness tester

Measurement rangesMeasurement ranges

Steel/ iron: HRC: 20 to 67.9; HRB: 59.6 to 99.5; HB: 80 to 647; HV: 80 to 940; HSD: 32.5 to 99.5

Tools: HRC: 20.5 to 67.1; HV: 80 to 898

Stainless steel: HRC: 19.6 to 62.4; HRB: 46.5 to 101.7; HB:85 to 655; HV: 85 to 802

GC. iron: HB: 93 to 334

NC. iron: HB: 131 to 387

Cast aluminium: HB: 30 to 159

Brass: HRB: 13.5 to 95.3; HB:40 to 173

Bronze: HB:60 to 290

Copper: HB:45 to 315

Scales of hardness: HL, HRC, HRB, HB, HV, HSD

Types of materials (adjustable)

STEEL

CWT. STEEL

STAIN. STEEL

GC. IRON

NC. IRON

C. ALUMIN

BRASS

BRONZE

COPPER

Accuracy: ±6 HL para HL = 800 (0.8%)

Instrument of percussion: type D (integrated)

Maximum hardness: 940 HV

Radius of the moving component (convexed / concaved): R min = 30mm (with 10mm component)

Minimum weight of the moving component

5kg without base

2 to 5kg with base

50g to 2 kg with base and accompanying board

Minimum depth of the moving component: 3mm with accompanying board

Minimum penetration: 0.8mm

Power: 9V DC rechargeable

Operating time: 12h

Maximum temperature of the moving component: +120°C

Operating temperature: 0 to 50°C

Dimensions: 100 x 60 x 33mm

Weight: 150g

Delivery Contents: 1 x PCE-1000 durometer

1 x elastic pin

1 x test block

1 x charger

1 x cleaning brush

1 x case

1 x user's manual
