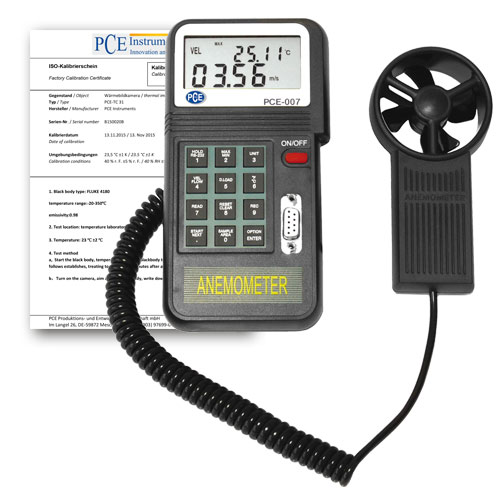

PCE 007-ICA HVAC Air Velocity /Temperature Data Logger (0,0 ~45,0 m/s)

Specification

Ranges of measurement with the corresponding symbol of measurement displayed for the PCE-007 Flow meter:

- m / s: 0.0 ... 45.0

- Feet/min: 0.0 ... 8800

- Knots: 0.0 ... 88.0

- Km/h: 0.0 ... 140.0

- Mph: 0.0 ... 100.0

- °C / °F: 0.0 ... 45.0 / 32 ... 113°F

- m³/min: 0.0 ... 999,900

Resolution:

- Wind speed: 0.01 m/s (the same for all units)

- Air temperature: 0.2°C / 32.4°F

- Data logger: 0.001 to 100 (according to the measurement range)

Accuracy:

- Wind speed: ±3% ±0.1 (the same for all units)

- Air temperature: ±1°C / 33.8°F

- Data logger: Calculated from the wind speed and the surface

Interface:Yes, RS-232 for data transfer

Memory:Yes, 2000 readings either as wind speed or temperature.

Don't forget: if the memory is full, it will save all currently stored data, but if the batteries have no power, then all the data will be lost.

Software:Yes, for the configuration of the device and to transfer data to a computer (with Windows 95, 98, 2000 or XP Professional)

Measurement values can be exported to other programmes such as Excel.

Data transmission rate (via software): 1 s

Side wheel

- Casing: Sapphire (set upon bearings of precious stones)

- Dimensions: 66 x 132 x 29.2 mm / 2.6 x 5.2 x 1.1 in

Display: 2 double LCDs with 4 digits

Operating conditions:

Data logger: 0 ... 50°C / 32 ... 122°F, <80% r.h.

Side wheel: 0 ... 60°C / 32 ... 140°F, <80% r.h.

Power: 1 x 9V battery (approx. 50 hours of use)

Dimensions of the device: 88 x 168 x 26.2mm / 3.5 x 6.6 x 1 in

Enclosure: ABS plastic

Weight: 350g / < lb

Delivery contents

1 x PCE-007 HVAC Data- Logger meter with impeller and 1.5 m / 4.9 ft long cable

1 x Interface

1 x Software

1 x Battery

1 x Bag

1 x User's manual

1 x ISO calibration certificate
