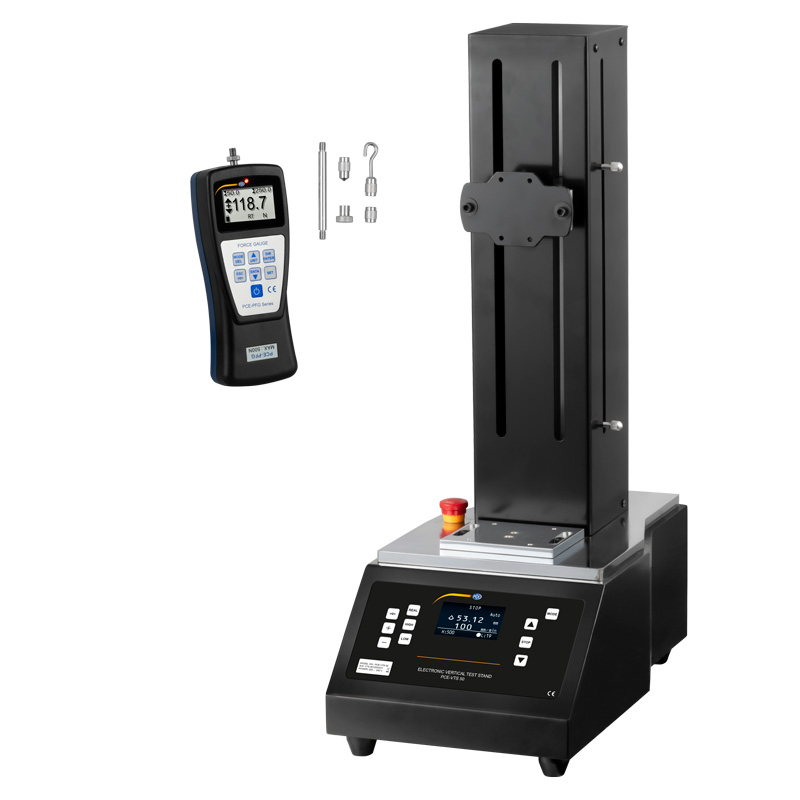

PCE VTS 50-PFG 500-KIT KIT incl. Force Test Stand and Force Gauge (0~500 N)

Measuring range: 0 ... 500 N

Resolution: 0.1 N

Accuracy: ±0.3 % of the measuring range

Measurement units: N, kgF, lbF

Display: 1.8" graphic display

Alarm modes: Below, Inside, Outside

Sampling rate: 500 Hz

Memory: 100 measurements

Power supply: lithium battery 3.7 V / 1500 mAh

Battery life: up to 36 hours

Power supply / USB charging adapter: 5 V / 1 A

Outputs

interface: USB B

Switching output / alarm modes: MD6 with 2.85 V if active

Protection class: IP 54

Operating and storage conditions: 5 ... 45 °C; 35 ... 65 % r.H. not condensing

Force application: M6 x 10 mm thread

Dimensions: 189 x 707 x 34 mm

Weight: 450 g

-Force Test Stand:

Force range: 500 N / 50 kg / 110 lb

Distance display resolution: 0.02 mm

Travel path: 270 mm / 10.6"

Speed: 1 ... 500 mm/min

Resolution: 1 mm/min

Speed accuracy: 2 %

Power supply: 220 ... 240 V AC, 1.5 A

Fuse: 2 A

Ambient conditions: 20 °C ±10 °C, 15 ... 80 % RH

Dimensions: 45 x 26 x 68 cm / 17.7 x 10.2 x 26.7"

Weight: 35 kg / 77 lb

Delivery Scope:

1 x Force Gauge PCE-PFG 500

1 x Flat head adapter Ø13 mm

1 x Pointed head adapter

1 x Hook adapter

1 x Extension rod (75 mm)

1 x USB cable

1 x USB charger

1 x Plastic carrying case

1 x Vertical Force Test Stand PCE-VTS 50

1 x Pulse cable for PCE-PFG series (version 1.0.3 or higher)

4 x Rubber feet

2 x Allen keys

1 x Power cable

1 x Instruction manual
