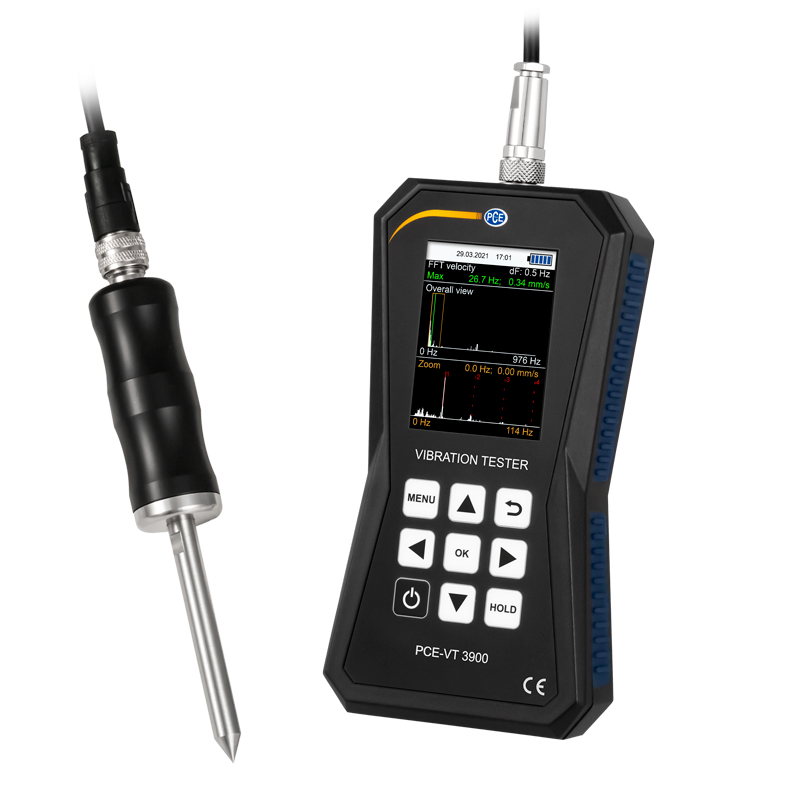

PCE VT 3900S Vibration Meter (0~399,9 m/s²; 0~399,9 mm/s; 600~50000 RPM; 0~3,9 mm)

- Measuring range: Acceleration

0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²

Resolution: 0.1 m/s² / 3.94 in/s²

Accuracy @ 160 Hz: ±2 %

Frequency range: 10 Hz ... 10 kHz; 1 kHz ... 10 kHz

- Measuring range: Velocity

0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s

Resolution: 0.1 mm/s / 0.0039 in/s

Accuracy @ 160 Hz: ±2 %

Frequency range: 10 Hz ... 1 kHz

-Measuring range: Rotational Speed

600 ... 50000 RPM

FFT acceleration: 10 Hz ... 8 kHz

FFT velocity: 10 Hz… 1 kHz

Accuracy @ 160 Hz: ± 2%

Number of FFT lines: 2048

Route measurement: 100 routes each with 100 machines each with 100 measuring points with 1000 measured values each

- Measuring range: Displacement

0.000 ... 3.9 mm / 0.000 - 0.154 in

Resolution: 1 µm / 39.4 µin

Accuracy @ 160 Hz: ±2 %

Frequency range: 10 Hz ... 200 Hz

Measurement parameters: RMS, Peak, Peak-Peak, Crest factor

Manual memory: 99 folders with 50 measured values each

Data logger:

Various start/stop triggers

Measurement interval between 1 s … 12 h

50 memory locations with 43200 measured values each

Units: can be switched to metric / imperial

Display: 2.48" LC display

Menu languages: English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish,Russian, Chinese, Japanese

Power supplyinternal:

LiPo battery (3.7 V, 2500 mAh)

external: USB 5 VDC, 500 mA

Operating time: ca. 15 … 20 h (depending on display brightness)

Operating and storage conditions :

temperature: -20 ... +65 °C / -4 ... 149 °F

humidity: 10% RH ... 95% RH, non-condensing

Dimensions: 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3"

Weight: 239 g / 8.4 oz

-Technical Data Vibration Sensor:

Resonance frequency: 24 kHz

Transverse sensitivity: ≤ 5%

Destruction limit: 5000 g (peak)

Operating and storage temperature: -55 °C … +150 °C / -67 °F ... 302 °F

Housing material: stainless steel and plastic

Mounting thread: ¼ - 28“

Dimensions: Ø 29 x 81 mm / 1.14 x 3.18"

Weight (without cable): 119 g / 4.2 oz

Delivery Scope:

1 x Vibration Meter PCE-VT 3900S

1 x Sensor with handgrip

1 x Spiral cable

1 x Measuring tip

1 x Micro USB cable

1 x USB stick with software and instructions

1 x Quick start guide

1 x Service bag
