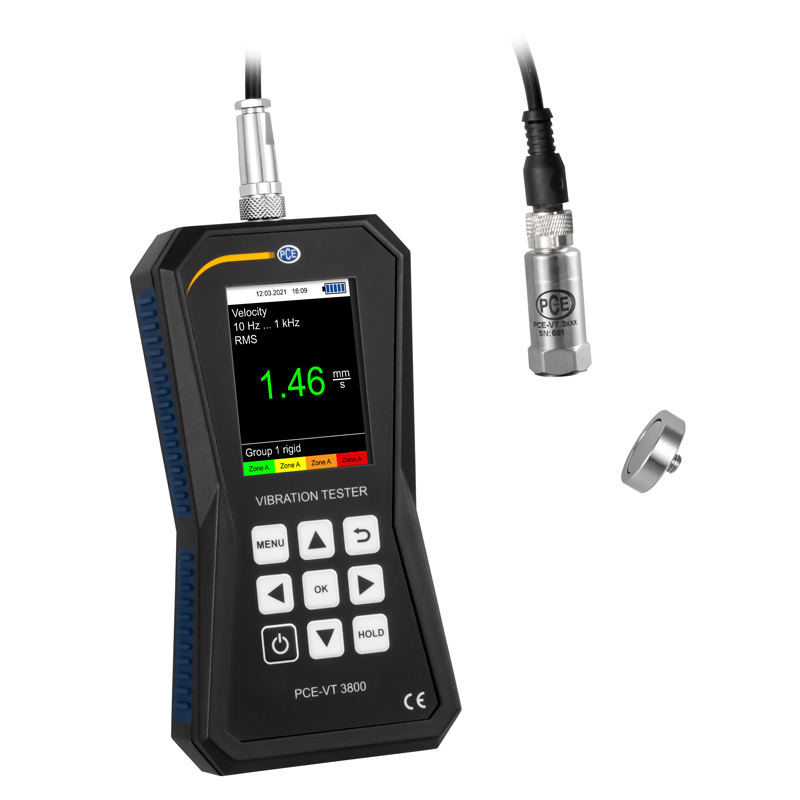

PCE VT 3800 Vibration Meter (0~399,9 m/s², 10 kHz)

Measuring range:Acceleration

0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²

Resolution: 0.1 m/s² / 3.94 in/s²

Accuracy: @ 160 Hz±2 %

Frequency range: 10 Hz ... 10 kHz

1 kHz ... 10 kHz

Measuring range: Velocity

0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s

Resolution: 0.1 mm/s / 0.0039 in/s

Accuracy: @ 160 Hz ±2 %

Frequency range: 10 Hz ... 1 kHz

Measuring rangeDisplacement

0.000 ... 3.9 mm / 0.000 - 0.154 in

Resolution: 1 µm / 39.4 µin

Accuracy: @ 160 Hz.±2 %

Frequency range: 10 Hz ... 200 Hz

Measurement parameters: RMS, Peak, Peak-Peak

Crest factor

Manual memory99 folders with 50 measured values ​​each

Data logger: Various start/stop triggers

Measurement interval between 1 s … 12 h

50 memory locations with 43200 measured values ​​each

Units: can be switched to metric / imperial

Display2.48" LC display

Menu languagesEnglish, German, French

Spanish, Italian, Dutch

Portuguese, Turkish, Polish

Russian, Chinese, Japanese

Power supply: internal: LiPo battery (3.7 V, 2500 mAh)

external: USB 5 VDC, 500 mA

Operating time: ca. 15 … 20 h (depending on display brightness)

Operating and storage conditions

temperature: -20 ... +65 °C / -4 ... 149 °F

humidity: 10% RH ... 95% RH,

non-condensing

Dimensions: 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3"

Weight: 239 g / 8.4 oz

Technical Data Vibration Sensor

Resonance frequency: 24 kHz

Transverse sensitivity: ≤ 5%

Destruction limit: 5000 g (peak)

Operating and storage temperature : -55 °C … +150 °C / -67 °F ... 302 °F

Housing material: stainless steel

Mounting thread: ¼ - 28“

Dimensions: Ø 17 x 46 mm / 0.67 x 1.8"

Weight: (without cable)52 g / 1.8 oz

Delivery scope:

1 x HVAC Meter PCE-VT 3800

1 x Sensor

1 x Spiral cable

1 x Magnetic adapter

1 x Micro USB cable

1 x USB stick with software and instructions

1 x Quick start guide

1 x Service bag
