Specification
Measuring range:Sensor with 1 mV/(m/s²);Sensor with 10 mV/(m/s²)
Acceleration:1100 m/s² / 3609 ft/s²;110 m/s² / 361 ft/s²
Velocity:100 mm/s ... 10,000 mm/s; 10 mm/s ... 1,000 mm/s
4.0 in/s ... 394.0 in/s (1 kHz/1 Hz); 0.4 in/s ... 39.4 in/s (1 kHz/1 Hz)
Displacement (Peak):250 µm ... 15,000 µm; 25 µm ... 1,500 µm
0.01 in ... 0.6 in (5 Hz/250 Hz); 0.001 in ... 0.06 in (5 Hz/250 Hz)
Delivery Contents

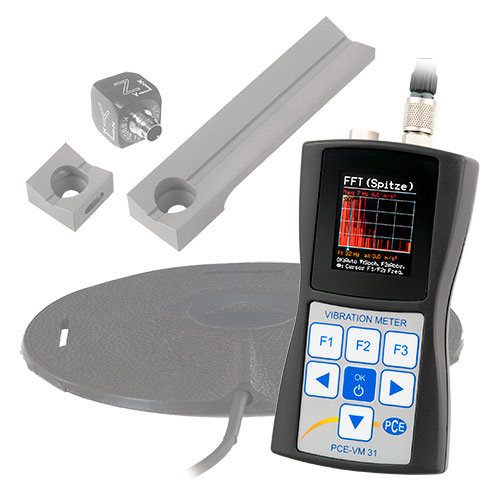

1 x PCE-VM 31-HAWB Tri-Axial Accelerometer
1 x Hand-arm acceleration sensor KS903.10
1 x Whole-body acceleration sensor KB103SVD
1 x Handheld adapter for curved surfaces 142
1 x Handle adapter for curved surfaces 140
1 x Sensor cable (3 m / 9.84 ft long)
1 x USB cable
3 x Batteries
1 x User manual
1 x Carrying case
