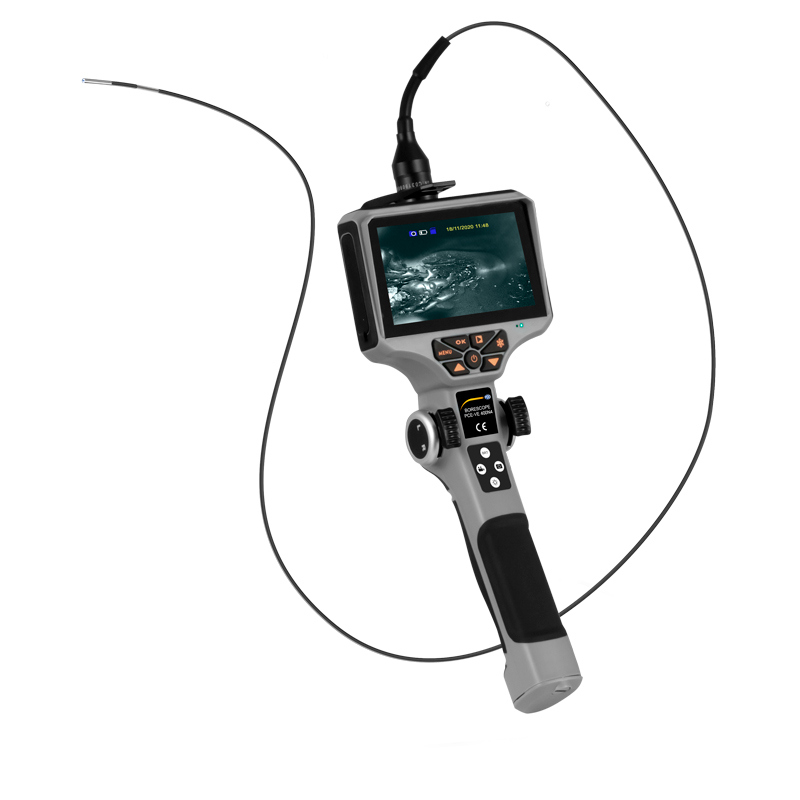

PCE VE 900N4 Industrial Borescope (2 mm; 3~30 mm)

Cable / head diameter: 2 mm

Direction of movement camera head: 4-way

Length of camera head: 7 mm

Bending radius: 6 mm

Camera head material: Titanium alloy

Camera lens material: Glass

Perspective: 80°

Line of sight: 0°

Focus area: 3 ... 30 mm

Image sensor: 1/18" color

Resolution: 160000 pixels

Refresh rate: 30 Hz

Endoscope cable length: 1.2 m / 3.9 ft

Endoscope cable material: Tungsten

Degree of protection endoscope cable: IP58

Operating conditions:

Main unit: 0 ... 45°C / 32 ... 113°F, 15 ... 90% rH

Cable: 0 ... 60°C / 32 ... 140°F

Display: LCD 5" 16: 9 display

Interface: Micro USB

Video output: HDMI

Storage: SDHC memory card up to 64 GB

Power supply: Li-ion battery 3350-mAh; 5V power supply

Dimensions: 33.5 x 14.5 x 8 cm

Weight: Approx. 700 g / 1.5 lbs

Delivery Scope:

1 x Industrial Borescope PCE-VE 900N4

1 x Power supply including charger

1 x Carrying case

1 x Card reader

1 x Memory card

2 x Li-ion batteries

1 x HDMI cable

1 x Cleaning set

1 x Operating instructions

Please note: This borescope is not suitable for medical purposes!
