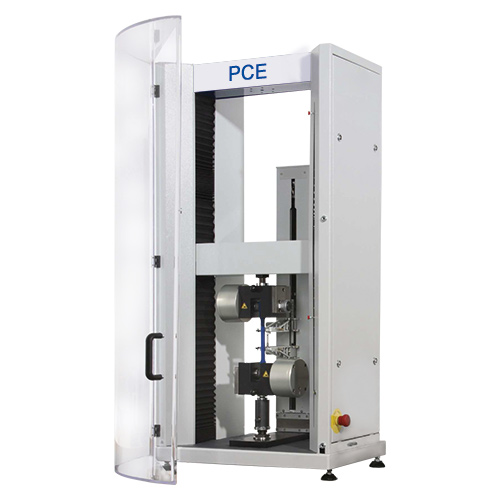

PCE UTU 50 Material Test Stand

Manufacturer: PCE-UK

Model: PCE-UTU 50

Warranty: 12 months

Specifications

Rated load:50 kN

Accuracy class:0.5 / EN 7500-1

Drive:controlled DC motor

Test speed:0.001 ... 500 mm/min, Resolution: 1 µm

Distance measurement:incremental

Standard stroke:1000 mm (Without tensioning and tensioning adapters)

Work-life:450 mm

Supply:230 V AC, 50 Hz

Framework:

2 ground guide columns

2 ball circulating spindles

Column cover with bellows seal

Limit switch for travel limit

Powder coated housing parts

Colour: RAL 7035

Safety devices:Enclosure from Makrolon; Safety switching contact

Measurements:HxWxD 1330 x 650 x 530 mm

Weight:ca. 140 kg

Force transducer for UPM

Installed underneath the mobile traverse for compressive and tensile forces.

Measuring range:1 ... 50 kN

Nominal value:2 mV/V

Relative characteristic deviation:≤ ±0.1 %

Relative linearity deviation:≤ ±0.02 %

Relative creep error:≤ ±0.03 % after 30 min

≤ ±0.07 % after 8 h

Accuracy class:to EN ISO 7500-1, Class 0.5

Overload:50 %

Protection class:IP 67

TEDS module:integrated, to IEEE 1451-4

automatic sensor detection

Control and evaluation electronics

Measured value acquisition:1 kHz

Display:LC-Display

Interface:RS-232

Functions:

Force regulation

Distance regulation

Manual positioning

Processing of a programmed sequence

Specification of the crosshead speed

Return to the starting position

Cycles

Presetting limits for force / distance / time

Resetting the force / distance indicator to 0

Adjustable control factor

Breaking recognition

Maximum value memory

For 2 force transducer: choice of the work area

Dilivery Contents

1 x material test stand PCE-UTU 50

1 x force transducer (including mounting material, plug, socket and cabling)

1 x control and evaluation electronics

1 x intelligent measuring and control technology (including slave module)

1 x software

1 x instruction manual
