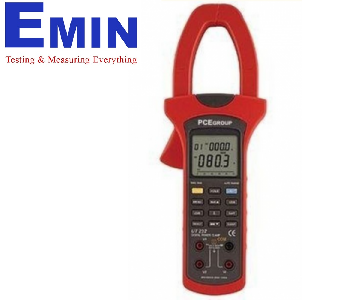

PCE PCE-UT232 Power analyzer
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Power (AC/TRMS) | 20/100/300/600V, ±1.2% +5 digits |
| Current (AC/TRMS) | 40/100/400/1,000A, ±2.0% +5 digits |
| Active paower measurement | 0.01kW to 600kW; ±3.0% +5 digits |
| Apparent power measurement | 0.01kVA to 600kVA; ±3.0% +5 digits |
| Reactive power measurement | 0.01 kVAr to 600 kVAr; ±4.0% +5 digits |
| Active energy (Kh counter) | 1 to 9,999kWh, ±3.0% +2 digits |
| Power factor (cos φ) | 0.3 to 1.00 inductive and capacitive; ±0.02 +2 digits |
| Phase angle | 0 to 360º; ±1.0º |
| Frequency | 20 to 500Hz |
| Memory | 99 readings |
| Display | 9,999 with graphic bars and backlight |
| Power | 4 batteries (1.5V) |
| Dimensions (width x height x depth) | 112 x 39 x 303mm |
| Weight | 600g |
Contents
PCE-UT232 power analyser
4 test cables
4 alligator clips
USB interface
software
4 batteries
carrying case
user manual
Discontinued
