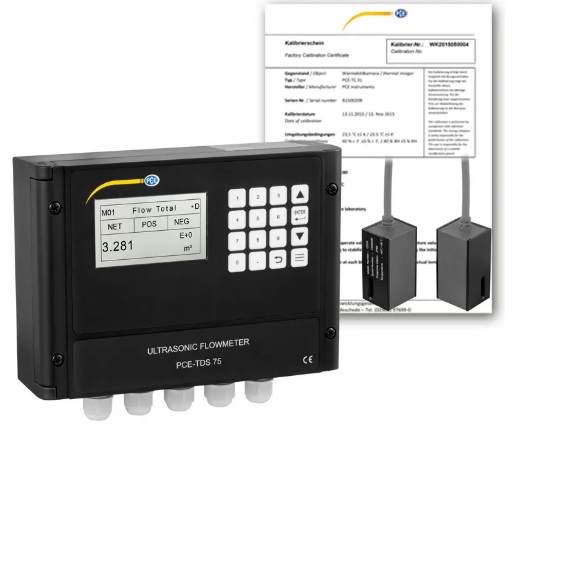

PCE TDS 75-ICA Ultrasonic Flow Meter (± 0,03~± 5 m/s; ISO Calibration Certificate)

Measuring range: ± 0.03 ... ± 5 m / s (± 0.09 ... ± 16 ft / s)

Measurement accuracy: ± 1% of the measured value

Repeatability: 0.2%

Pipe diameter: 25 ... 1200 mm (1 ... 48 in)

Analog output: 0/4 ... 20 mA (maximum load 750 Ω)

Pulse output: 0 ... 9999 Hz OCT (Frequency limits are adjustable)

Relay output: 1 A at 125V AC, 2 A at 30V DC

Maximum frequency: 1 Hz

Communication interface: RS232 & RS485

Power supply: 10 ... 36V DC

Power consumption: 1 A

Display: LCD, 256 x 128 pixels, with backlight

Ambient conditions base: -40 ... 60°C / -40 ... 140°F; 0 ... 99% RH non-condensing

Ambient conditions sensor: -40 ... 80°C / -40 ... 176° F; 0 ... 99% RH non-condensing

Housing material base: PC / ABS

Protection class base : IP 65

Protection class sensor: IP 68

Cable length: 9 m / 30 ft

Dimensions: 16 x 23 x 28 cm / 6.3 x 9.1 x 11"

Weight: 3.2 kg / 7.1 lbs

Delivery Scope:

1 x Ultrasonic flow meter PCE-TDS 75

2 x Flow sensors

1 x Wall mounting set

2 x Hose clamps

1 x Instruction manual

1 x ISO Calibration Certificate
