-Infrared sensor:
Resolution: 220 x 160 pixels
Wavelength: 8 ... 14 μm
Thermal sensitivity: 70 mk
Refresh rate: 9 Hz
Field of view (FOV): 35° x 26°
Focusing: Firm focus
Smallest distance: 0.15 m / 5.9 in
Temperature range: -20 ... 300°C / -4 ... 572°F
Accuracy: ± 2°C / 3.6°F, ± 2%
Calibration of the measurement: Auto
Number of spots: 1
Number of measuring ranges: 1
Emissivity: Range: 0.01 ... 1.00
Color palettes: Rainbow, iron oxide red, cold color, black & white, white & black
-Other specifications:
Picture in picture function: Adjustable 25%, 50%, 75%, 100%
Camera resolution: 300,000 pixels
Screen: 3.2" TFT
Screen resolution: 320 x 240 pixels
Image memory: Built-in SD card with 3 Gb for more than 20,000 images
Image format: JPG
Power supply battery: Built-in 18650 battery, about 2800-mAh
Power supply power supply:
Primary: 100 ... 240V AC 50/60 Hz
Secondary: 5V / 2 ADC
Interface: Micro USB for charging and memory readout on a PC
Operating time: Between 2 ... 3 hours
Menu languages: English, Chinese, Italian, German
Automatic shutdown: After 5, 20 minutes or disabled
Ambient temperature: 0 ... 45°C / 32 ... 113°F
Storage conditions: -20 ... 60°C / -4 ... 140°F
Humidity: ≤ 85% RH (non-condensing)
Dimensions: 90 x 103 x 223 mm / 3.5 x 4.1 x 8.8 in
Weight: 424 g / < 1 lb
Delivery Scope:

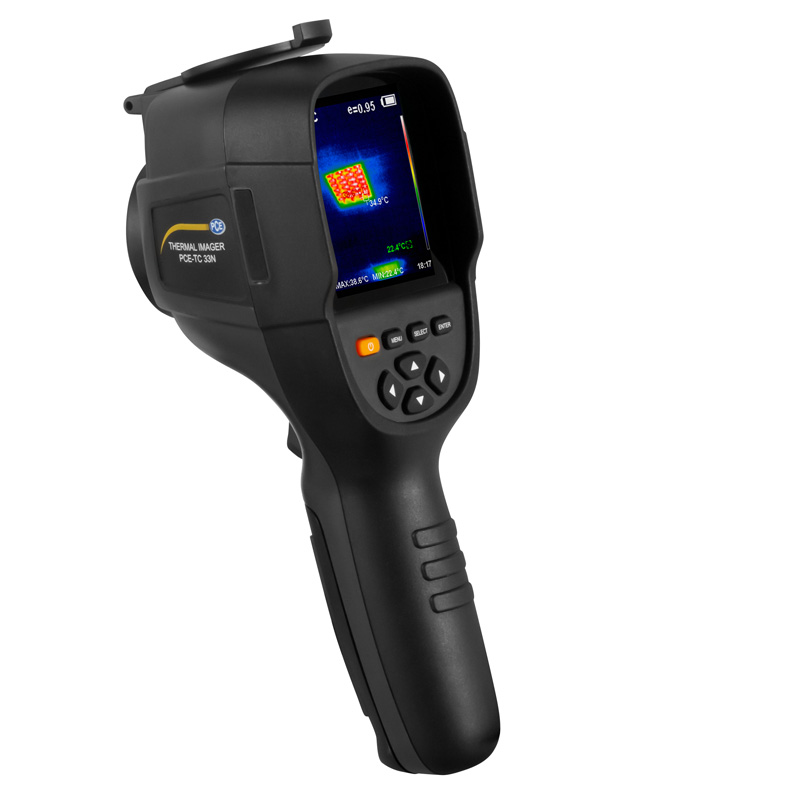

1 x Infrared thermometer PCE-TC 33N
1 x Micro USB cable
1 x USB charging adapter
1 x Carrying bag
1 x User manual
N.B. Not available to UK or other countries outside EU. If inside EU, please purchase from one of our EU websites (Germany, France, Netherlands, Italy, Spain, etc). See "Country" in top-right of webpage.
