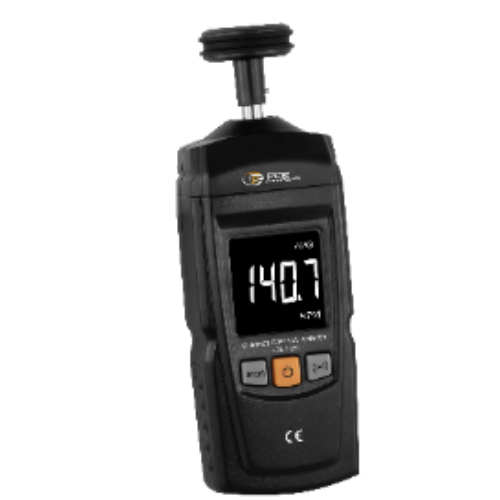

PCE T 230 Tachometer (0.5 ... 9999 RPM)

Specification

Optical speed

Measurement range up to: 2.5 ... 999.9 RPM

Resolution: 0.1 RPM

Accuracy: ± (0.1 % of Rd + 5 digits)

Optical speed

Measurement range up to: 1000 ... 99999 RPM

Resolution: 1 RPM

Accuracy: ± (1 % of Rd + 5 digits)

General technical data

Measuring functions MIN, MAX, LAST, AVG

Display type: LCD

Display size: 1.8 Inch

Measuring rate: 1 x per second

Automatic power-off: 60 s

Laser: Class 3A 2-5 mW

Measuring distance: 50 ... 500 mm

Menu language: English, English (GB)

Protection class (device): IP20

Weight: 100 g

Operating conditions: 0 ... 50 °C , 10 ... 90 % RH

Storage conditions: -10 ... 80 °C , 10 ... 75 % RH

(Rechargeable) battery: 2 x 1.5 V AAA battery , Zinc carbon

Capacity: 400 mAh

Dimensions ( L x W x H ): 127 x 55 x 30 mm

Delivery Scope

1 x Tachometer PCE-T 220

1 x user manual

2 x AAA 1.5 V battery

3 x reflective tape approx. 20 cm
