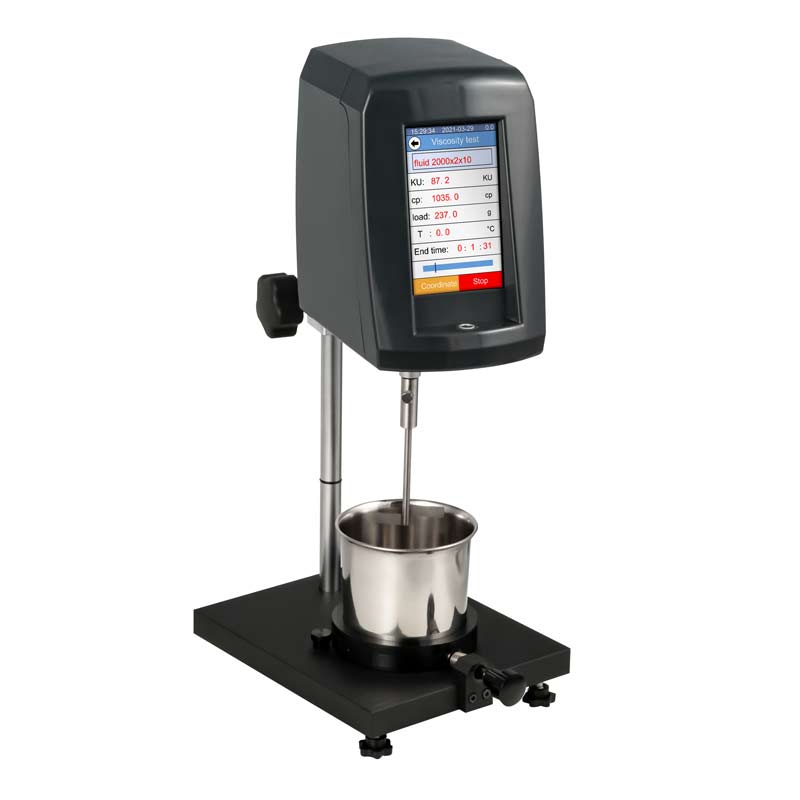

PCE RVI 8 Paint Viscosity Tester (40.2 ~141 KU, ±1 %)

Viscosity

Measuring range: 40.2 ... 141 KU

27 ... 5250 cp (1cP = 1 mPa*s)

32 ... 1099 g

Resolution: 0.1 KU

1 cp

1 g

Accuracy: ±1 % of full scale

Temperature

Measuring range: -20 ... 250 °C / -4 ... 482 °F

Resolution: 0.1 °C

Accuracy: ±0.3 °C

SpindleKU1

Rotation speed: 200 RPM

Measuring cup volume : 600 ml

Display5" LCD touchscreen

Power supply: primary: 100 ... 240 V AC, 0.5 A

secondary: 12V DC, 2 A

Operating conditions: 5 ... 35 °C / 41 ... 95 °F, (20 °C / 68 °F recommended temperature)

<80 % non-condensing

Dimensions: 420 x 180 x 300 mm / 16.5 x 7.1 x 11.8"

Weight: ca. 5 kg / 11 lb

Delivery scope

1 x Paint Viscosity Tester PCE-RVI 8

1 x Sample pan

1 x Height adapter

1 x Spindle KU1

1 x Temperature sensor

1 x Stand

1 x Touchscreen pen

1 x Transport case

1 x Mains power adapter

1 x Instruction manual

Datasheet
