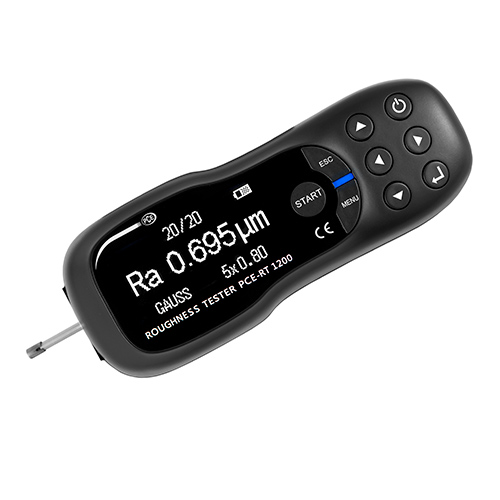

PCE RT 1200 Roughness Tester

Specification

Measurement parameters:Ra, Rz, Rq, Rt

Measuring ranges:Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin

Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin

Radius probe tip:5 µm/ 196.850 µin

Material probe tip:Diamond, 90° angled

Max. recommended force for static measurement: 4 mN (0.4 gf)

Radius longitudinal guide bar:45 mm / 1.77"

Maximum driving distance:15 mm / 0.59"

Measuring principle:Inductive

Cut-off wavelength:0.25 mm / 0.8 mm / 2.5 mm

0.009" / 0.03" / 0.098"

Testing speed:

0.135 mm/s at cut-off wavelength: 0.25 mm

0.5 mm/s at cut-off wavelength: 0.8 mm

1 mm/s at cut-off wavelength: 2.5 mm

Reversing speed: 1 mm/s

Measuring accuracy:< ± 10%

Repeatability:< 6%

Display:OLED

Units:μm / μinch (switchable)

Interface:Micro-USB

Power supply:Rechargeable Li-ion battery

Dimensions L x W x H:150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in

Weight:370 g / < 1 lb

Delivery contents

1 x Material Surface Roughness Tester PCE-RT 1200

1 x Micro-probe

1 x Protective cap for the probe

1 x Chuck

1 x Downloadable Software

1 x Calibration plate

1 x Roughness standard

1 x USB cable

1 x Charging adapter

1 x Carrying case

1 x User manual
