- Pressure:
Measuring Range: 0 bar ... 38.5 bar
Resolution: 0.1 bar
- Liquid Extraction Rate:
R134a: 2.6 kg/min
R22: 2.9 kg/min
R410A: 3.9 kg/min
- Push/Pull Extraction Rate:
R134a: 7.5 kg/min
R22: 8.5 kg/min
R410A: 9.5 kg/min
- General Technical Data:
Units: bar, MPa, kPa, psi, kgf
Connection Type: 1/4" SAE
Display Type: LCD with backlight
Refrigerants: R401C, R22, R401B, R134a, R407D, R509, R407B, R410A, R507, R407C, R408A, R12, R32, R409A, R402A, R500, R404A, R402B, R401A, R406A, R1234YF, R502, R407A
Motor Power: 1 HP
Max. Current Consumption: 6 A
Compressor: Oil-free, Air-cooled
Menu Language: English
Protection Class: IP20
Power Supply: Schuko Plug (110 V - 240 V AC | 50/60 Hz)
Weight: 10.75 kg
Device Weight with Accessories: 11.45 kg
Device Weight with Accessories and Packaging: 12.75 kg
Dimensions (L x W x H): 38 x 25 x 30 mm
Operating Conditions: 0 ... +40 °C, +10 ... +90 % r.F.
Storage Conditions: 0 ... +40 °C, +10 ... +90 % r.F.
- Delivery Scope:

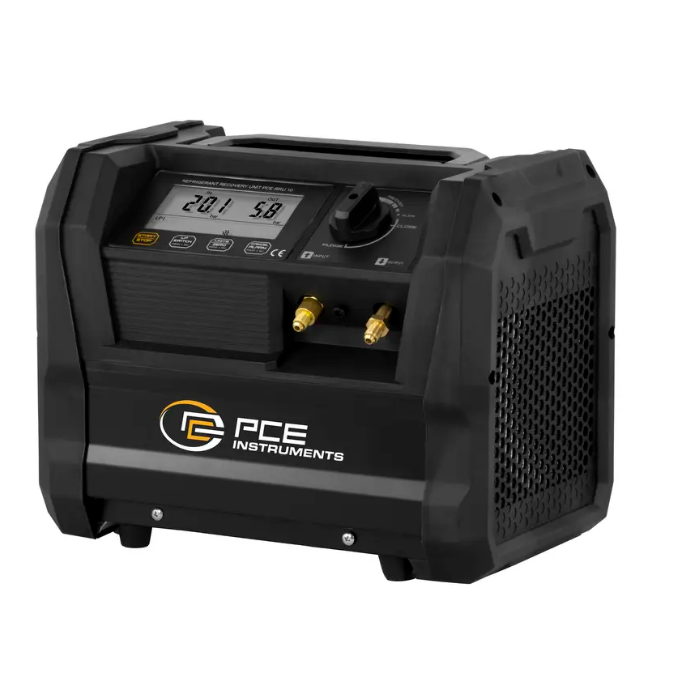

1 x Refrigerant Testing Device PCE-RRU 10
1 x Carrying Strap
1 x Refrigerant Filter
1 x OFP Cable for DOT Bottles (specific countries)
1 x Filter Connection Hose
1 x Power Cable
1 x User Manual
