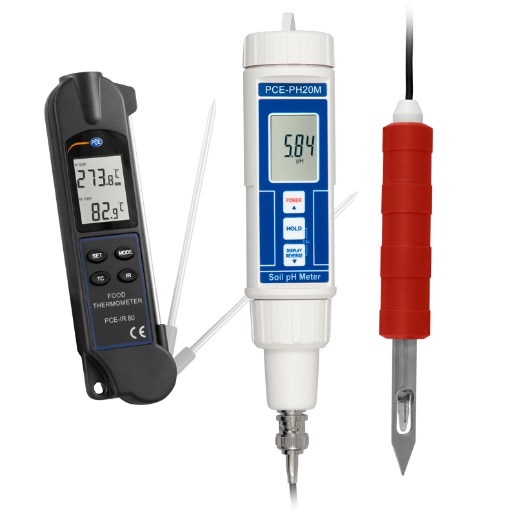

PCE PH20M-IR 80-KIT pH Meter Kit for the Food Industry (0~14 pH; -35~330 °C)

PCE-PH20M

Measuring range: 0.00 ... 14.00 pH

Resolution: 0.01 pH

Accuracy:

± 0.07 pH (in the range 5 ... 9 pH)

± 0.1 pH (in the range 4 ... 4.9 and 9.1 ... 10 pH)

± 0.2 pH (in the range 1. .. 3.9 and 10 ... 13 pH)

Calibration: Automatically, at pH 4, 7 or 10 using calibration Solutions

Electrode: Food pH electrode CPC-OSH-12-01 BNC connector

Power supply: 4 x 1.5V AAA batteries

Environmental conditions: 0 ... 60°C / 32 ... 140°F, < 80% rh

Dimensions: 180 x 40 mm / 7.1 x 1.6 in

Weight: 220 g / < 1 lb

PCE-IR 80

Measurement type: infrared

Measuring range: -35 ... 330°C / -31 ... 626°F

Resolution: 0.1°C / 0.18°F

Accuracy: -35 ... 0°C / -31 ... 32°F : ± 4°C / 7.2°F, > 0°C / 32°F: ± 2% of mv ± 2°C / 3.6°F

Measurement type: penetration sensor

Measuring range: -20 ... 260°C / -4 ... 500°F

Resolution: 0.1°C / 0.18°F

Accuracy: ± 1% of meas. Mw. ± 1.5°C / 2.7°F

Measuring spot ratio: 4: 1

Emissivity: Adjustable 0.1 ... 1.0

Response time: 10 ms

Spectral range: 8 ... 14 µm

Power supply: 3.0V CR2032 battery

Operating conditions: 0 ... 50°C / 32 ... 122°F max. 80% RH

Weight: Approx. 100 g / < 1 lb

Dimensions: 151 x 41 x 20 mm / 5.9 x 1.6 x 0.8 in

Delivery Scope:

1 x PCE-PH20M-IR 80-KIT

1 x Infrared thermometer PCE-IR 80

1 x pH electrode CPC-OSH-12-01 (for food)

4 x Batteries

1 x Battery 3.0V CR2032

1 x Calibration kit with solutions pH4 + 7 (75 ml bottle each)

1 x Operating manual
