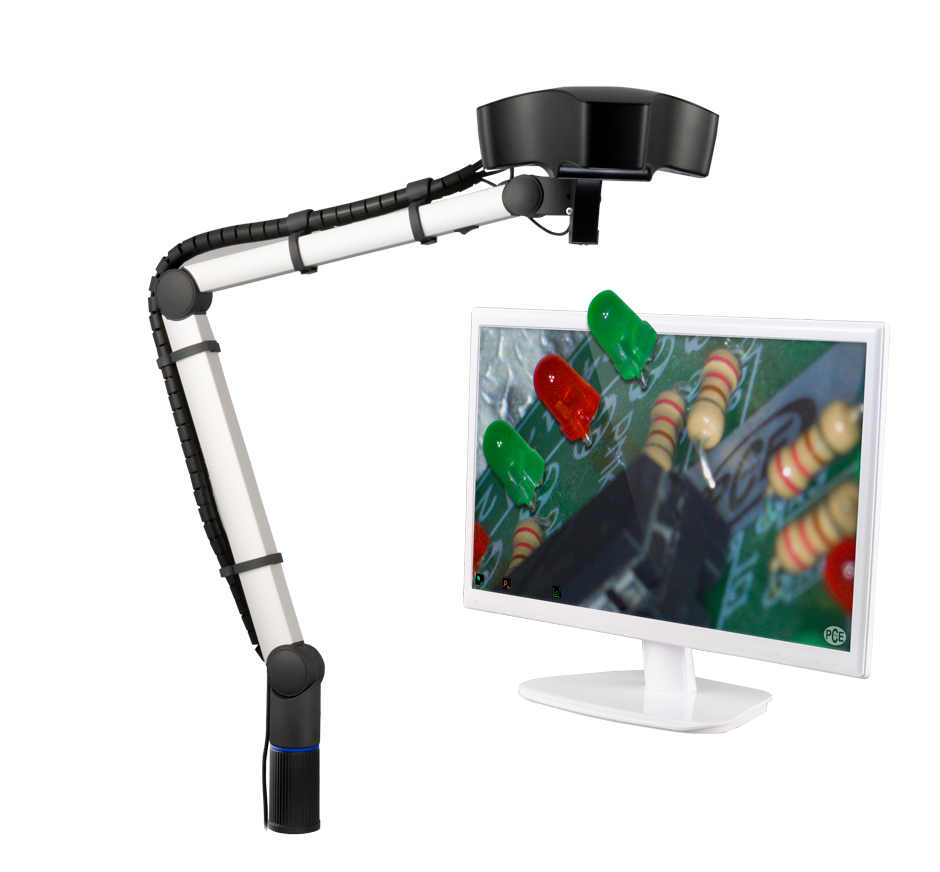

PCE OVM 3D Digital Microscope (15~30X)

Magnification: 15, 20, 25, 30 times

Working distance: 430 mm / 16.9"

Depth of field: ca. 12 mm / 0.47"

Object field: ca. 32 x 19 mm / 1.26 x 0.74" or 24 x 15 mm / 0.94 x 0.59"

Image capture: 2 x 1,920 x 1,080 Pixel (Full HD)

LED lighting: 40,000 Lux; 5,000 K

Image reproduction:

60 Hz Full HD for 2D

60 Hz Full HD interlaced for 3D

Connections: 2 x USB, 1 x RJ 45 (Ethernet), 1 x HDMI

Stand length: 840 mm / 33"

Color depth: 24 Bit

Monitor (screen diagonal): 21.5"

Power supply: 120 V … 240 V (50/60 HZ)

Power consumption: ca. 50W (without monitor)

Protection class: IP20

Monitor installation: stand / Vesa mount

Monitor dimensions: 507 x 178 x 390 mm / 20 x 7 x 15"

Monitor weight: 3.1 kg / 6.8 lb

Operating conditions: 5 °C ... 45 °C / 41 °F ... 113 °F

Packaging: 662 x 540 x 302 mm / 26 x 21 x 12"

Total weight (gross): ca. 8 kg / 17.6 lb

Delivery scope:

1 x PCE-OVM 3D digital microscope

1 x 3D monitor with power supply

1 x Table tripod

1 x Foot switch

1 x USB mouse

1 x Work pad

2 x 3D glasses

1 x USB stick

1 x Instruction manual
