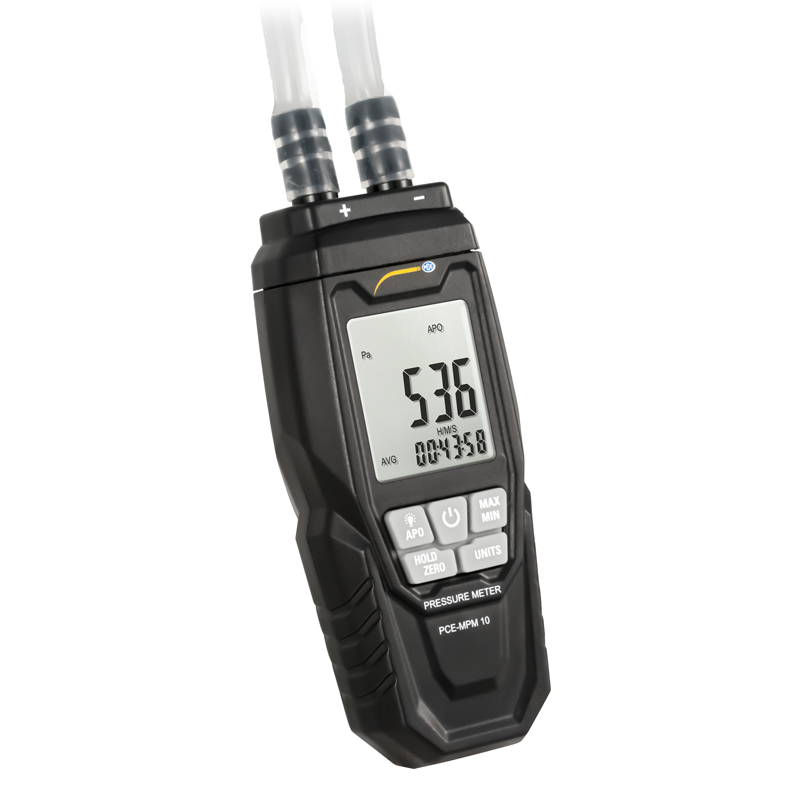

PCE MPM 10 Manometer (±5000 Pa)

Measuring range Pa: ±5000 Pa

Resolution: 1 Pa

Measuring range hPa: ±50.00 hPa

Resolution: 0.01 hPa

Measuring range mBar: ±50.00 hPa

Resolution: 0.01 hPa

Measuring range mmH2O: ±509.9 mmH2O

Resolution: 0.1 mmH2O

Measuring range mmHg: ±37.50 mmHg

Resolution: 0.01 mmHg

Measuring range inH2O: ±20.07 inH2O

Resolution: 0.01 inH2O

Measuring range inHg: ±1.476 inHg

Resolution: 0.001 inHg

Measuring range psi: ±0.725 psi

Resolution: 0.001 psi

Measuring range ozin²: ±11.60 ozin²

Resolution: 0.01 ozin²

Measuring range bar: ±0.050 bar

Resolution: 0.001 bar

Measuring range kPa: ±5.000 kPa

Resolution: 0.001 kPa

Further specifications

DisplayLCD

Accuracy: ±0.3 % of full scale @25 °C / 77 °F

Repeatability: ±0.2 % of full scale (maximum ±0.5 % of full scale)

Linearity: ±0.29 % of full scale

Medium: gaseous

Maximum pressure: 2 psi

Measuring rate: 2 Hz

Battery status displaydisplay when the battery voltage is too low

Exceeding the measuring range "OL" display

Operating conditions: 0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing

Storage conditions: -10 ... 60 °C / 14 ... 140 °F, <90 % RH, non-condensing

Hose connection: 2 x 8 mm / 0.078 x 0.315"

Power supply: 3 x 1.5 V batteries

Dimensions: 140 x 52 x 28 mm / 5.5 x 2.0 x 1.1"

Weight: 130 g / 4.58 oz

Delivery scope

1 x Manometer PCE-MPM 10

2 x 1 m / 3.3 ft hose connection

3 x 1.5 V battery

1 x Instruction manual

Datasheet
