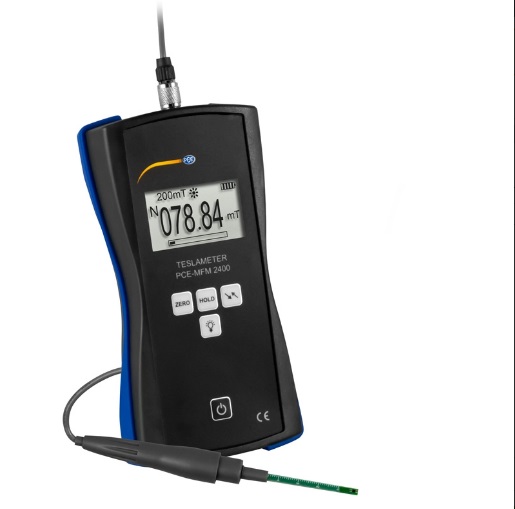

PCE MFM 2400 Electromagnetic Field Meter (0~2.400 mT; 0~24.000 G)

Measuring range:

0… 200 mT

200… 2,400 mT

0 ... 2,000 G

2,000 ... 24,000 G

Accuracy: ± 1% of reading

Resolution: 0.01 mT; 0.1 g

Measuring direction: Transversal

Magnetic field: Static (DC)

Unit: mT, G

Power supply: 1 x 9V block battery

Automatic shutdown: Automatic shutdown after 5 minutes in idle status

Modes: Hold mode, measurement mode

Display: Backlight digital 4-digit value display

Operating temperature: 32 ... 122° F, / 0… 50°C

Storage temperature: -4 ... 122°F / 20… 50°C

Dimensions: 185 x 97 x 40 mm / 7.28 x 3.82 x 1.57 in

Weight: 0.68 lb, 310 g

Sensor: Hall sensor transversal, cable length approx. 3.28 ft., 1 m

Delivery Scope:

1 x Electromagnetic Field Meter PCE-MFM 2400

1 x Hall sensor (transverse)

1 x Service bag

1 x 9V block battery

1 x Instruction manual
