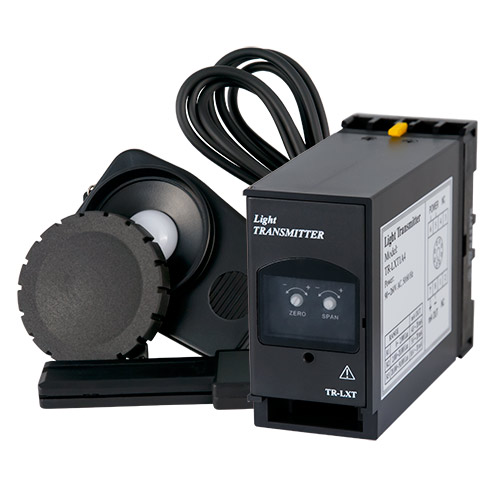

PCE LXT-TRM Lux Meter (0~50.000 lux)

- Lux Meter sensor:

Measurement Range: 0 ... 50,000 lux en three ranges

Resolution: 0.1 lx / 1 lx

Accuracy:

± 5% of reading ± 10 digits (<10,000 lux)

± 10% of reading ± 10 digits (>10,000 lux)

Repeatability: ± 5%

Sensor: Photodiode with color correction filter according to CIE

Power supply: By the transmitter of the light transducer

Cable length (from the sensor transmitter to the light transducer): 1.5 m / 4.9 ft

Environmental conditions: Maximum 80% H. r. / 0 ... 50°C / 32 ... 122°F

Housing material: ABS plastic

- Transmitter of the Lux Meter:

Housing: ABS plastic

Power supply: 90 ... 260 ACV

Calibration: Adjustable with slave screw of the light transducer

Output: 4 ... 20-mA

Protection type: IP 54

Environmental conditions for the light transducer: Maximum 85% R.H. / 0 ... 50°C / 32 ... 122°F

Delivery Scope:

1 x PCE-LXT-TRM Lux meter transmitter unit

1 x External light sensor probe with 1.5 m / 4.9 in long cable

1 x Wall-mounting bracket

1 x User manual
