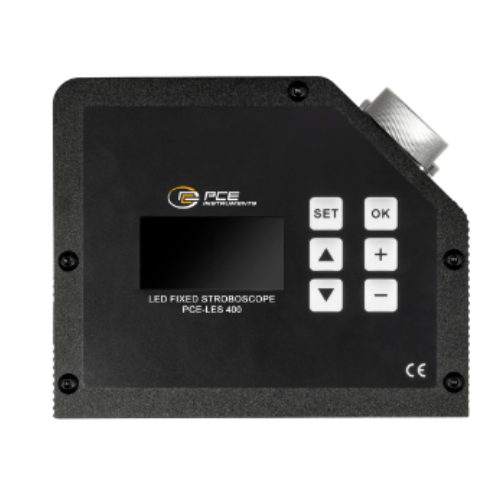

PCE LES 400 Rotation meter (50 ... 36000 FPM)

Specification

Frequency

Measurement range up to: 50 ... 36000 FPM

Resolution: 0.1 FPM

Accuracy: ±0.01 % of Rd.

Frequency

Measurement range up to: 1 ... 600 Hz

Resolution: 0.01 Hz

Accuracy: ±0.01 % of Rd.

General technical data

Units Hz, f/m, m/min

Display type: Graphic LCD

Display size: 2.4 Inch

Luminous intensity: 1590 Lux @ 36000 FPM / 10 cm

Phase shift: 0 ... 359 °

Pulse width: Flash duration 1 ... 3 %, max. 100 µs

Light source: 20 LED's

Trigger input: greater than + 2.5 V peak, 20 µs min. Pulse width

Sensor supply: 12 V, 50 mA

Menu language: English, Chinese

Protection class (device): IP20

Power supply: 220 V AC | 50Hz

Connector type: Schuko plug

Weight: 1280 g

Operating conditions: 0 ... 50 °C , 0 ... 95 % RH

Storage conditions: 0 ... 50 °C , 0 ... 95 % RH

Dimensions ( L x W x H ): 150 x 115 x 130 mm

Delivery Scope

1 x Rotation Meter PCE-LES 400

1 x aluminium slot profile

1 x 4-pin coupling

1 x connection cable

1 x external trigger sensor

1 x fixing screws

1 x user manual
