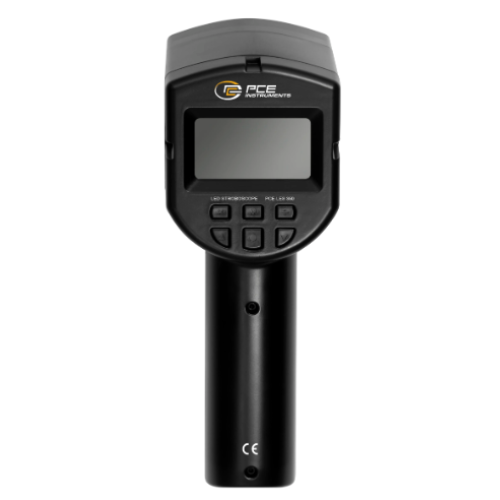

PCE LES 350 Tachometer (50 ... 12000 FPM)

Frequency

Measurement range up to:50 ... 12000 FPM

Resolution:0.1 FPM

Accuracy:±0.01 % v.Mw.

Frequency:

Measurement range up to:1 ... 200 Hz

Resolution:0.01 Hz

Accuracy:±0.01 % v.Mw.

General technical data

Units:Hz, f/m, m/min

Display type:Graphic LCD

Operating time:4 h

Automatic power-off from...to:1 ... 250 min.

Luminous intensity:6270 Lux @ 12000 FPM / 20 cm

Pulse width:8 ... 50 µs ( ±1µs )

Light source:144 LED´s

Menu language:English, Chinese

Protection class (device):IP20

Power supply:100 ... 240 V AC | 50 ... 60 Hz, 0.5 A

Connector type:Device-europlug

Weight:435 g

Operating conditions:0 ... 50 °C , 0 ... 95 % r.F

Storage conditions:0 ... 50 °C , 0 ... 95 % r.F

Capacity:2600 mAh

Dimensions ( L x W x H ):203 x 80 x 85 mm

Delivery Scope

1 x Tachometer PCE-LES 350

1 x mains adaptor 12.6 V / 2 A

1 x carrying case

1 x user manual

Description

Tachometer / light source 144 LEDs / automatic power-off 1 ... 250 min / doubling/division of FPM / adjustable flash duration / illuminance: 6270 lux @ 1200 FPM at 20 cm

Our Tachometer offers the possibility of precisely recording and analysing fast movements. With a measurement range of 50 to 12000 FPM and a high accuracy of 0.01 %, movements at different velocities can be analysed with high precision.

Our Tachometer uses 144 high-performance LEDs to generate short, intense flashes of light that are emitted at regular intervals. These flashes are synchronised with the movement or machine being examined, giving the impression that the movement is frozen or extremely slow. This phenomenon is based on the proven principle of stroboscopy, in which the eye only perceives intermittent images of fast-moving objects through discrete flashes of light. The illuminance is 6270 lux at 12000 FPM and a distance of 20 cm. Measurements are simplified by the auto-scan function which gradually increases the flash frequency to quickly establish synchronisation.

For easy adjustment of the flash frequency, our Tachometer offers options in increments of 1 as well as the possibility to double or halve the flash frequency. Depending on your requirements, the flash frequency can be selected in FPM, Hz or m/min. To save energy and extend battery life, it is equipped with an automatic power-off function and an adjustable flash duration of 1 to 250 minutes. Our handy and Tachometer can be used in various fields such as industry, science and research as well as in the music industry. Equipped with a rechargeable 12-volt battery, it offers an operating time of approx. 4 hours.
