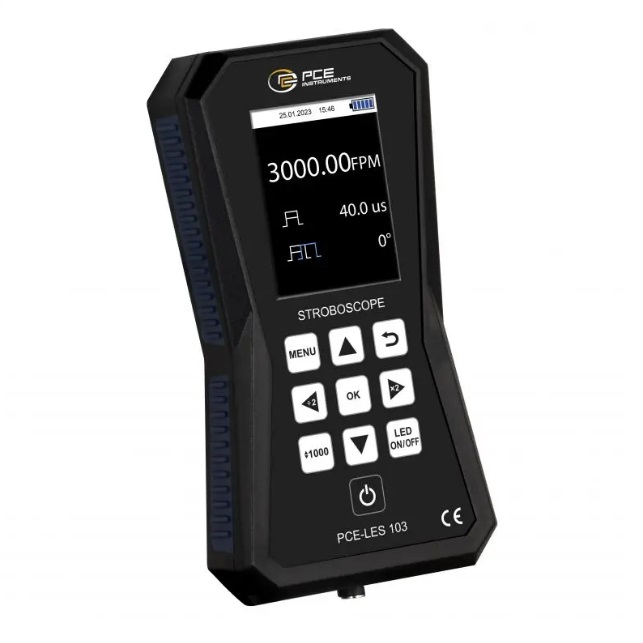

PCE PCE-LES 103 Stroboscope (+60 FPM~+300000 FPM)

- Frequency:

Measurement Range: +60 FPM ... +9999.99 FPM

Resolution: 0.01 FPM

Accuracy: 0.001%

- Frequency:

Measurement Range: +10000 FPM ... +300000 FPM

Resolution: 0.1 FPM

Accuracy: 0.001%

- Frequency:

Measurement Range: +1 Hz ... +5000 Hz

Resolution: 0.01 Hz

Accuracy: 0.001%

- General Technical Data:

Display Type: TFT Color Display

Display Size: 2.8 inches

Operating Time: 4.5 hours

Operating Time Additional Information: at flash frequency 100 Hz, 1%, display brightness 70%

Adjustable Auto Shutdown: 2 ... 10 min.

Auto Shutdown Deactivatable: Yes

Brightness:

11730 lux @ 20cm @ 1000Hz 1%

6160 lux @ 30cm @ 1000Hz 1%

2650 lux @ 50cm @ 1000Hz 1%

Light Color: 6500 K

Phase Shift: -360 ... 360 °

Pulse Width: 0.01 … 1% of pulse duration

Resolution: 0.01%

0.01 º … 3.60 º of 360 º

Resolution: 0.01 º

Menu Language: German, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese

Protection Class (Device): IP52

Power Supply: 5V DC, 2A

Weight: 284 g

Dimensions (L x W x H): 165 x 90 x 35 mm / 6,4 x 3,5 x 1,3 in

Operating Conditions: -20 ... 60 °C, 35 ... 85% r.H

Storage Conditions: -20 ... 60 °C, 35 ... 85% r.H

Instruction Manual Languages: German, English

- Batteries and Accumulators:

Type: Lithium-Ion Battery

Lithium Info: Lithium in the product (built-in or included)

Capacity: 2200 mAh

Voltage: 7.4 V

SystemSecondary: Rechargeable Battery / Accumulator

Number: 1

- Delivery scope:

1 x Stroboskop PCE-LES 103

1 x USB-C Kabel

1 x Quick Start Guide

1 x Servicetasche
