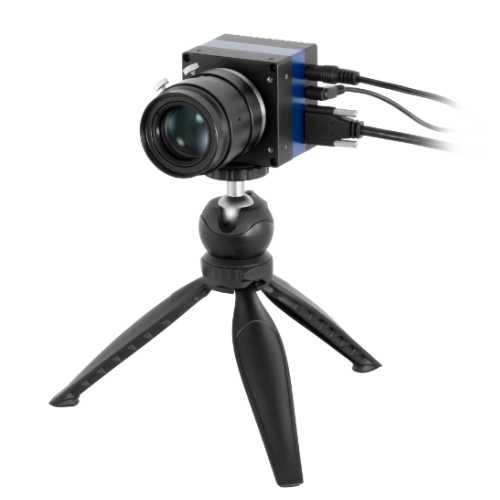

PCE HSC 8960 High-Speed Camera (2560 x 1024 @ 140 FPS)

Specification

General technical data

Interface: Micro USB 3.0

Sensor: CMOS

Resolution: 2560 x 1024 @ 140 FPS

1920 x 768 @ 245 FPS

1280 x 512 @ 560 FPS

800 x 320 @ 1432 FPS

640 x 256 @ 2240 FPS

320 x 128 @ 8960 FPS

Housing: Aluminium

Tripod thread: 1/4 inch

Luminous intensity: 33 W dimmable

35800 lx @ 0.5 m

9600 lx @ 1 m

2500 lx @ 2 m

Fastening: Fine thread M2.5

Lens: F1.4 / f=50mm

C mount / CS mount:

Image / video format: bmp, JPG, PNG, mp4, mpg

Trigger input: TTL/RS-422 from the extension I/O connection

Sensitivity: ISO 100 ... 6400 (monochrome)

Pixel size: 5 µm

Digital amplification: 0.01 ... 16 x

Shutter speed: 0.001 ... 100 mS

Protection class (device): IP20

Power supply: 100 ... 240 V AC | 50/60 Hz

Mains adaptors included:

Connector type: Euro plug

Weight: 509 g

Operating conditions: 0 ... 40 °C , 20 ... 80 % RH

Storage conditions: -20 ... 60 °C , 20 ... 95 % RH

Dimensions ( L x W x H ): 110 x 60 x 60 mm

Delivery Scope

1 x High-Speed Camera PCE-HSC 8960

1 x LED light

2 x small tripod

1 x remote trigger release

1 x mains adaptor 14 V / 2.8 A

1 x mains adaptor 12 V / 1 A

2 x I-type plug adaptor

2 x G-type plug adaptor

2 x F-type plug adaptor

1 x USB 3.0 cable

1 x PC software on USB pen drive

1 x carrying case

1 x user manual
