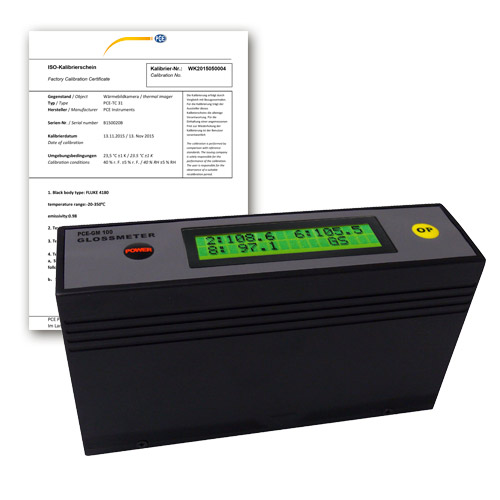

PCE GM 100-ICA Gloss Meter

Specification

Measurement range:0.0 to 200 gloss units

Resolution:0.1 gloss units

Accuracy:±1.2 gloss units

Repeatability:±0.4 gloss units

Calibration / recalibration:Automatic using a standard which comes included

Type of light:A

Measurement points:Selectable from 20º, 60º to 85º

Dimensions of calibration standard:95 x 40 mm / 3.7 x 1.6 in

Display:10 mm / .4 in high LCD

Detector:Silicon photo-diode

Measurement surface:11 x 54 mm

Operating conditions:0 ... 40ºC / 32 ... 104ºF / 85% r.h.

Power:1.5V battery

Dimensions:145 x 38 x 80 mm / 5.7 x 1.5 x 3.1 in

Weight:330 g / < 1 lb

Delivery contents

1 x PCE-GM 100 Gloss meter

1 x Gloss standard

1 x Battery

1 x Carrying case

1 x Cleaning cloth

1 x User's manual

1 x ISO calibration certificate
