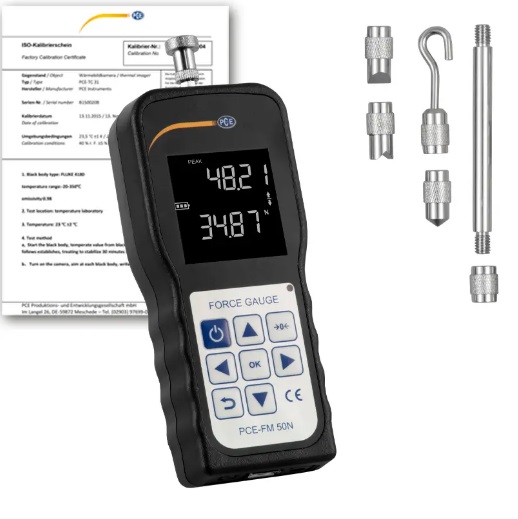

PCE FM 50N-ICA Force Gauge (0,5~50 N; ISO Calibration Cert.)

Measuring range: 0.5 ... 50 N / 0.1 ... 11 lbs

Resolution: 0.01 N / 0.002 lbs

Pressure calibration: 0.1 Mpa

Load cell: Integrated load cell with M6 connection

Measuring range: 1 ... 100% of the full scale

Measurement accuracy: ± 0.5 %

Units: N, kg, lb

Display: LCD

Power supply: Internal battery, 12V / 1 A power adapter

Operating temperature: 10 ... 30 °C / 50 ... 86°F

Relative humidity: 15 ... 80 % relative humidity

Weight: 1 kg / 2.2 lbs

Working conditions: The device must not be near sources of vibration or corrosive substances

Delivery Scope:

1 x PCE-FM 50N Force Gauge with internal load cell

1 x Downloadable evaluation software

1 x USB cable

1 x Flat head adapter

1 x Hook adapter

1 x Ball head adapter

1 x Chisel head adapter

1 x Notched head adapter

1 x Adapter for extension rod

1 x Extension bar (65 mm / 26 in)

1 x Charging adapter

1 x Device case

1 x User manual

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
