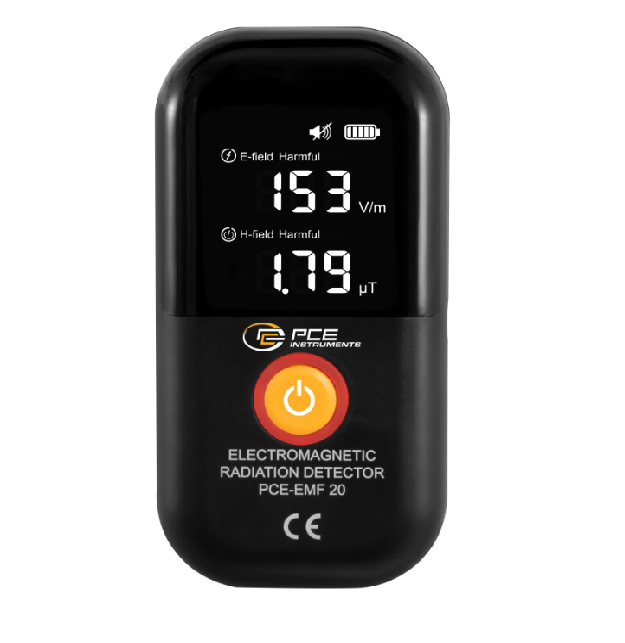

PCE EMF 20 Magnetometer (1 ~ 1999 V/m; 0.01 ~ 99.99 µT)

Radiation

Measurement range up to: 1 ... 1999 V/m

Resolution: 1 V/m

Accuracy: 1 V/m

Radiation

Measurement range up to: 0.01 ... 99.99 µT

Resolution: 0.01 µT

Accuracy: 0.01 µT

General technical data

Display type: LED

Display size: 2.2 Inch

Interface: USB-C

Response time: 0.5 s

Automatic power-off: 5 min

Bandwidth MF from: 5 Hz

Bandwidth MF to: 3500 MHz

Bandwidth EF from: 5 Hz

Bandwidth EF to: 3500 MHz

Alarm: Acoustic, optical

Menu language: English, English (GB)

Protection class (device): IP20

Power supply: 5 V

Weight: 75 g

Operating conditions: 0 ... 50 °C , 0 ... 90 % RH

Storage conditions: 0 ... 50 °C , 0 ... 90 % RH

(Rechargeable) battery: 1 x 3,7 V SL 603040 , Lithium-ion battery

Capacity: 700 mAh

Dimensions ( L x W x H ) 110 x 55 x 23 mm

Delivery Scope

1 x Magnetometer PCE-EMF 20

1 x USB-C cable

1 x user manual
