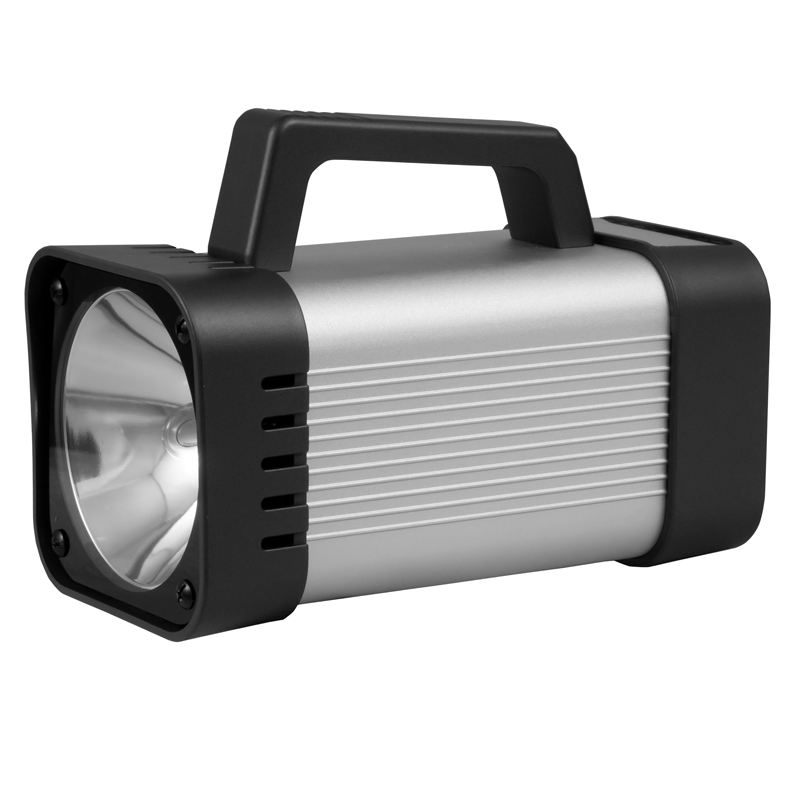

PCE DSX 20 Stroboscope (50~35000 RPM)

-Function: Lightning / speed

Area: 50 ... 35000 RPM / FPM

Resolution:

< 1000 PRM: 0.1 RPM

< 9999 RPM: 1 RPM

< 35000 RPM: 10 RPM

Accuracy: ± (0.05% of measured value + 2 Dgt)

-Function: Flash frequency

Area: 0.833 ... 583.3 Hz

Resolution:

< 599.9 RPM: 0.001 Hz

< 5999 RPM: 0.01 Hz

< 35000 RPM: 0.1 Hz

Accuracy:± (0.05% of measured value + 2 Dgt)

-Function: Phase shift

Area: 0 ... 359°

Resolution: 1°

Accuracy: ± (0.1% of measured value + 2 Dgt)

-Function: Ext. Trigger

Area: 0 ... 1200 ms

Resolution:

< 1000 PRM: 0.1 RPM

< 9999 RPM: 1 RPM

< 35000 RPM: 10 RPM

Accuracy: ± (0.1% of measured value + 2 Dgt)

Level ext. trigger: High: 2.5 ... 12V; Low: < 0.8V

Lamp type: Xenon flash

Flash response time: 10 ... 30 μs

Color temperature: 6500K

Flash output: 8 joules

Power supply:

PCE-DSX 20: 230 V AC 50/60 Hz

PCE-DSX 20-US: 110 V AC 50/60 Hz

Current consumption: 240-mA @ 3600 FPM

Operating condition: 0 ... 50°C / 32 ... 122°F, max 80% RH

Dimensions: 230 x 110 x 150 mm / 9 x 4.3 x 5.9 in

Weight: About 1145 g / 2.5 lbs

Delivery Scope:

1 x Stroboscope PCE-DSX 20

1 x Plug for trigger input

1 x Power cable

1 x User manual
