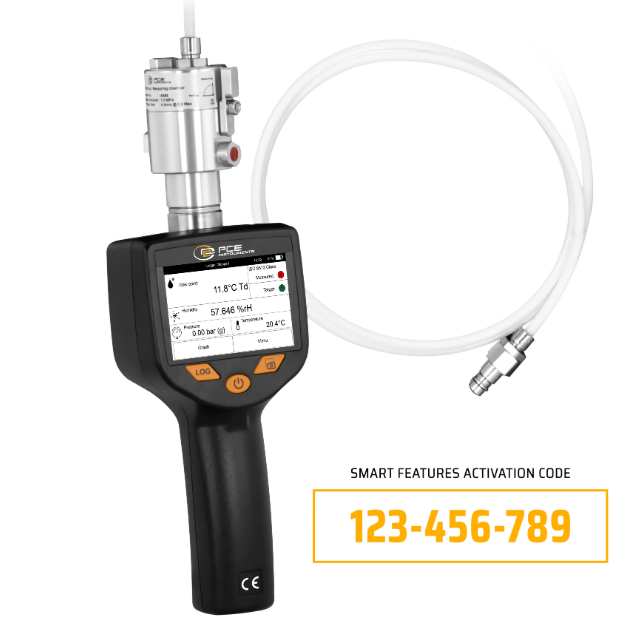

PCE PCE-DPM 10-SFKIT HVAC Meter (0 bar~15 bar; -100 °C~+50 °C, icl. smart features)

- Differential pressure:

Measuring range: 0 bar ... +15 bar

Resolution: 0.01 bar

Accuracy: 0.5 % v. Mb.

- Điểm sương:

Messbereich: -100 °C ... +50 °C

Auflösung: 0,1 °C

- Điểm sương:

Measuring range: 0 °C ... +20 °C

Resolution: 0.1 °C

Accuracy: ± 1°C

- Điểm sương:

Measuring range: -60 °C ... +50 °C

Resolution: 0.1 °C

Accuracy: ± 2°C

- Điểm sương:

Measuring range: -100 °C ... -60 °C

Resolution: 0.1 °C

Accuracy: ± 3°C

- Temperature:

Measuring range: -30 °C ... +50 °C

Resolution: 0.1 °C

Accuracy: ± 0.3 °C

- General technical data:

Measurement functions: Average value

Units: °C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.

Connections: G1/2" with 6mm quick coupling

Display type: LC Touch Display

Display size: 3.5 inches

Display refresh rate: 1 x per second

Other functions: PDF Export

Interface: USB- C

Standard(s): ISO8573- 1

Current consumption measuring device: 400 mA DC

Response time: 1 s

Measuring medium: Air, Nitrogen, Argon, Carbon Dioxide, Oxygen

Camera resolution: 5 Megapixel

Operating time: 8 h

Operating time Additional information: Charging takes approx. 3h.

Automatic shutdown adjustable: 10 ... 60 min.

Menu language: English, German, French, Spanish, Chinese, Korean, Japanese

Protection class (device): IP30

Power supply: 5V DC 3 A (via USB C)

Weight: 775 g

Device weight with delivery: 2.83 kg

device weight with scope of delivery and outer packaging. outer packaging: 2.93 kg

Dimensions (L x W x H): 310 x 100 x 60 mm

Other dimensions: PTFE hose 1.5 m with 6mm quick coupling

Operating conditions: 0 . .. 80 % RH

Storage conditions: 0 ... 40 °C , 0 ... 80 % RH

Instruction languages: German, English

Battery3500 mAh, 3,7 V

- Delivery scope:

1x HVAC Meter PCE-DPM 10-SFKIT

1x activation of the Smart features for PCE-DPM 10-SFKIT

1x PTFE hose with quick coupling

1x USB power supply with adapters

1x USB-C cable

1x USB-C stick

1x transport case

1x software (download)

1x operating instructions
