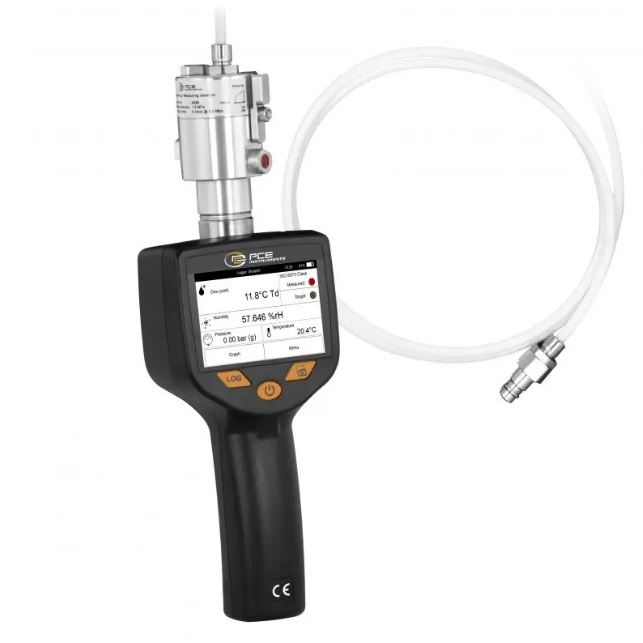

PCE PCE-DPM 10 HVAC Meter (0 bar~15 bar; -100 °C~+50 °C)

- Differential pressure:

Measuring range: 0 bar ... +15 bar

Resolution: 0.01 bar

Accuracy: 0.5 % v. Mb.

- Điểm sương:

Messbereich: -100 °C ... +50 °C

Auflösung: 0,1 °C

- Điểm sương:

Measuring range: 0 °C ... +20 °C

Resolution: 0.1 °C

Accuracy: ± 1°C

- Điểm sương:

Measuring range: -60 °C ... +50 °C

Resolution: 0.1 °C

Accuracy: ± 2°C

- Điểm sương:

Measuring range: -100 °C ... -60 °C

Resolution: 0.1 °C

Accuracy: ± 3°C

- Temperature:

Measuring range: -30 °C ... +50 °C

Resolution: 0.1 °C

Accuracy: ± 0.3 °C

- General technical data:

Measurement functions: Average value

Units: °C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.

Connections: G1/2" with 6mm quick coupling

Display type: LC Touch Display

Display size: 3.5 inches

Display refresh rate: 1 x per second

Storage medium: Internal memory

Memory interval of: 1 s

Memory interval up to: 60 s

Memory capacity: 100 million values

Interface: USB-C

Standard(s): ISO8573-1

Standard(s) Additional information: Evaluation according to ISO8573-1 only possible when purchasing the additional functions!

Order no. No. PCE-DPM 10-SF

SensorQCM (quartz crystal microbalance)

Response time: 1 s

Measuring medium; Air, nitrogen, argon, carbon dioxide, oxygen

Automatic switch-off adjustable: 10 ... 60 min.

Automatic switch-off can be deactivated: Yes

Housing: ABS

Menu language: English, German, French, Spanish, Chinese, Korean, Japanese

Protection class (device): IP30

Power supply: 5V DC 3 A (via USB-C)

Weight: 775 g

Dimensions (L x W x H): 310 x 100 x 60 mm

Other dimensions: PTFE hose 1.5 m with 6mm quick coupling

Operating conditions: 0 ... 40 °C , 0 ... 80 % RH

Storage conditions: 0 ... 40 °C , 0 ... 80 % r.H

Instruction languages: German

- Batteries and rechargeable batteries:

Type: Lithium-ion battery

Lithium info: Lithium in product (built-in or enclosed)

Capacity: 3500 mAh

Voltage: 3.7 V

SystemSecondary: Rechargeable battery / rechargeable battery

Number: 1

Weight: 55 g

Weight class: Class 05 (51 - 150g)

- Delivery scope:

1x Moisture Meter PCE-DPM 10

1x PTFE hose with quick coupling

1x USB power supply with adapters

1x USB-C cable

1x USB-C stick

1x transport case

1x software (download)

1x operating instructions
