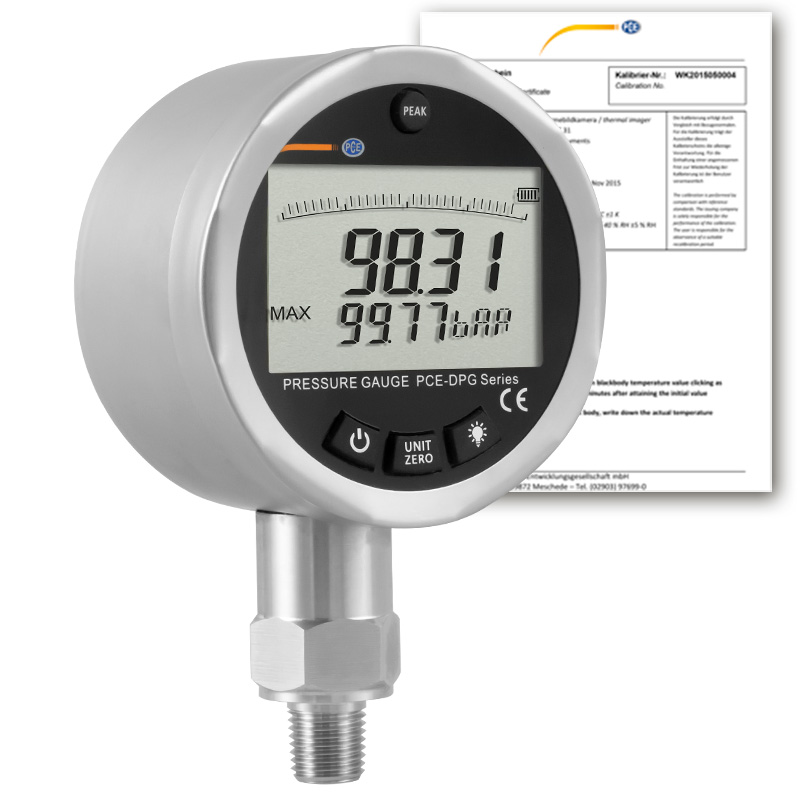

PCE DPG 100-ICA Pressure Gauge (0~1450 psi, 0~100 bar; ISO Calibration Certificate)

Measuring range: 0~1450 psi, 0~100 bar

Resolution: 0.145 psi, 0.01 bar

Accuracy: 0.25% FSO

Pressure: relative

Overpressure: 1.5 times

Measurable media: gases, water

Response time: < 50 ms

Housing material: metal

Measurement units: Mpa, bar, Kpa, mH2o, kg / cm², psi, mmH2o, in.WC, mbar

Protection class: IP56

Diameter display: 2.5"

Dimensions (without sensor): Ø80 x 50 mm / 3.1 x 2 in

Pressure connection: 1/40" NPT

Power supply: 3 x 1.5V AAA batteries

Environmental conditions: -10 ... 60°C / 14 ... 140°F, < 80% RH

Weight: approx. 276 g / < 1 lb (without batteries)

Delivery Scope:

1 x PCE-DPG 100-ICA

3 x Batteries 1.5V AAA

1 x Operating instructions

1 x ISO Calibration Certificate

Datasheet

Manual
