Sexagesimal indication: mm.ss.cc / hh.mm.ss / dd.hh.mm mmmm.ss / hhhh.mm / dddd.hh
Decimal indication: ssssss /sssss.s / ssss.ss / mmmmmm / mmmmm.m / mmmm.mm / hhhhhh / hhhhh.h / hhhh.hh
Screen: 6-digit 7-segment LED
Colour: Red or green (check availability)
Digits height: 14 mm
Function: Ascending or descending stopwatch
Controls: Start, stop, reset
Default Controls*: Potential free contact
*Configurable for push-pull, NPN, PNP, inductive, ...
Excitation voltage: +5V DC, +9V DC, +15V DC, +18V DC (max. 70-mA)
Vdc maximum at the input: ± 30V DC
Precision: 100 ppm
Display refresh: 12 times / second
Reset: front, rear and alarm activation
Counting memory: maintained in case of loss of power
Power '1': 85 to 265V AC / DC (isolated 2500 Veff)
Power '2': 11 to 60V DC and 24/48V AC (isolated 1500 Veff)
Output and control options: relays, analog outputs, serial communications, ...
Consumption: < 1.5W (indicator only); < 4.0W (indicator with options)
Electric connections: Screw plug-in terminal
Protection: Front: IP65
Mounting: Panel
Panel cut: 92 x 44 mm / 3.6 x 1.7 in
Dimensions: 96 x 48 x 91 mm / 3.8 x 1.9 x 3.6 in
Weight: Approx. 150 g / < 1 lb
Operating temperature: 0 ... 50°C / 32 ... 122°F
Storage temperature: -20 ... 70°C / -4 ... 158°F
-Delivery scope:

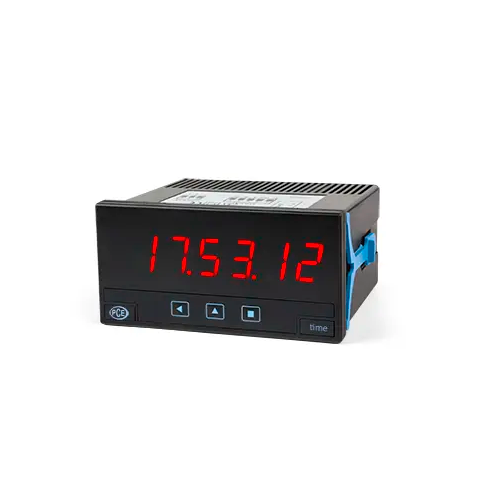

1 x Panel indicator PCE-DPC-C
1 x Power terminal
1 x Signal terminal
1 x Unit board
1 x Instruction manual
