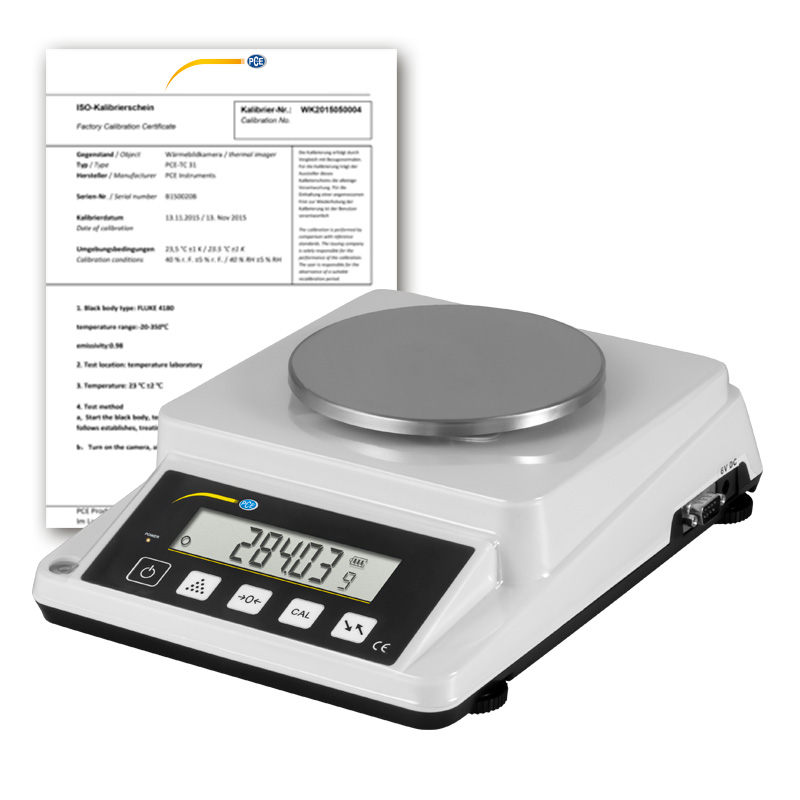

PCE DMS 310-ICA Paper Scale (0-310 g / 0-31,000 g/m²; 0,01 g / 1 g/m²)

Measuring range: 0 ... 310 g / 0 ... 31,000 g / m²

Resolution: 0.01 g / 1 g / m²

Repeatability: ± 0.02 g

Linearity: ± 0.03 g

Stabilization period: <3 s

Operating conditions: 17.5 ... 22.5°C / 63.5 ... 72.5°F, 85% rh non-condensing

Interface: Serial RS232

Power supply battery: 3 x 1.5V AA

Power supply power supply:

-Primary: 100 ... 240V, 50/60 Hz

-Secondary: 6V, 500-mA

Dimensions of the support surface: 270 x 200 x 80 mm / 10.6 x 7.9 x 3.1 in

Weight: 2 kg / 4.4 lbs

Delivery Scope:

1 x Paper scale PCE-DMS 310

1 x Test weight

1 x Power supply

1 x User manual

1 x ISO calibration certificate

Datasheet
