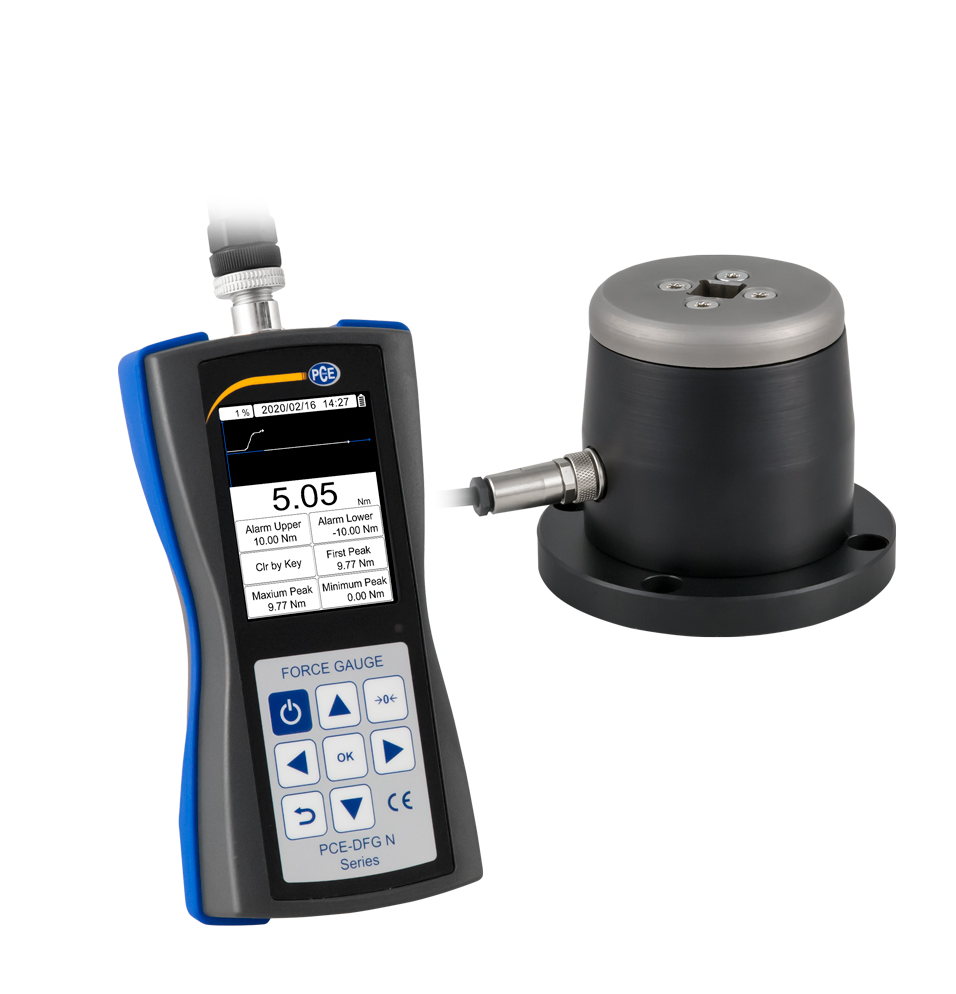

PCE DFG N 50TW Torque Meter (0~50 Nm)

Measuring range: 0 ... 50 Nm

Resolution: 0.01 Nm

Accuracy: ± 0.5% of the measuring range

Units of measurement: Nm, lbfft, kgfm

Torque sensor mount: 1/2" (12.5 x 12.5 mm) internal square

Torsion measurement: Left Right

Display: 2.8" TFT graphic display

Alarm modes: Inside Outside

Sampling rate: 6 ... 1600 Hz

Storage: For 100 measurement series with 8,000 measurement points each

Power supply: NiMh battery, 6V / 1600-mAh

Battery life: About 10 hours

Power supply / charging adapter: 12V / 1 A

OutputsInterface: USB

Switching output: 12V / 50-mA

Protection class: IP 54

Operating and storage conditions:

-10 ... 50°C / 14 ... 122°F

5 ... 95% RH non-condensing

Torque transducer dimensions: H 85 mm / Ø 72 mm / Ø 104 mm (H 3.3 in / Ø 2.8 in / Ø 4.1 in)

(see technical drawing)

Sensor cable length / td>: Approx. 1.5 m / 4.9 ft

Dimensions handset: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in

Weight handset: 540 g / 1.2 lbs

Weight of the torsion transducer: 985 g / 2.2 lbs

Delivery scope

1 x Torque meter PCE-DFG N 10TW

1 x Torque transducer 10 Nm

1 x 1.5 m / 4.9 ft sensor cable

1 x PC software

1 x USB data cable

1 x Power supply

1 x Carrying case

1 x Sensor screw socket

1 x Instruction manual
