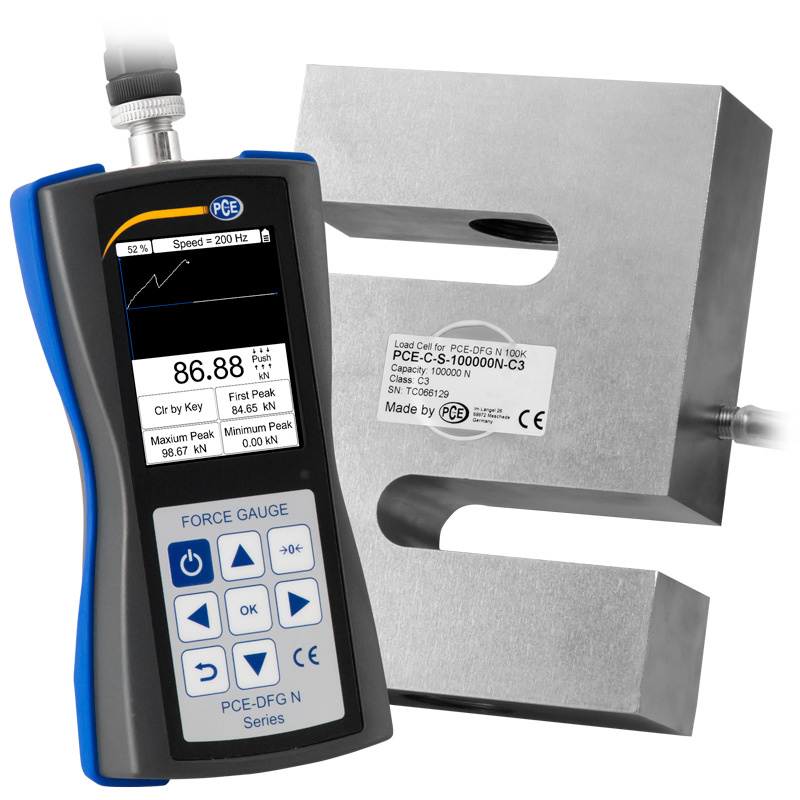

PCE DFG N 100K Force Gauge (0~100 kN; 10 N)

Measuring range: 0 ... 100 kN / 10,000 kg / 10 t

Resolution: 10 N

Accuracy: ±1.0% of the measuring range

Measurement units: kN, t, klb, MPa

Display: 2.8" TFT graphic display

Alarm modes: Inside, Outside, Crack/Overload, Shutdown

Sampling rate: 6 ... 1600 Hz

Memory: 100 measurements

Power supply: NiMh battery, 6 V / 1600 mAh

Battery life: approx. 10 hours

Power supply / charging adapter: 12 V / 1 A

Outputs: interface: USB

switching output: 12 V / 50 mA

Protection class handset: IP 54

Protection class load cell: IP 67

Operating and storage conditions: -10 ... 50 °C; 5 ... 95 % r.h. not condensing

Dimensions of load cell: L 112.78 mm / H 177.8 mm / W 42.93 mm / M30 x 2 thread (see technical drawing)

Cable length load cell: ca. 6 m

Dimensions of handset: 200 x 97 x 42 mm

Weight of handset: 540 g

Weight of load cell: ca. 7 kg (eye bolts optional)

Delivery Scope:

1 x Force Gauge PCE-DFG N 100K

1 x Load cell (depending on model)

1 x USB cable

1 x Charger

1 x PC software

1 x User manual

(Eye bolts optional, see accessories)
